9563 Series
Manufacturer: Belden Inc.
Beta
⌘K

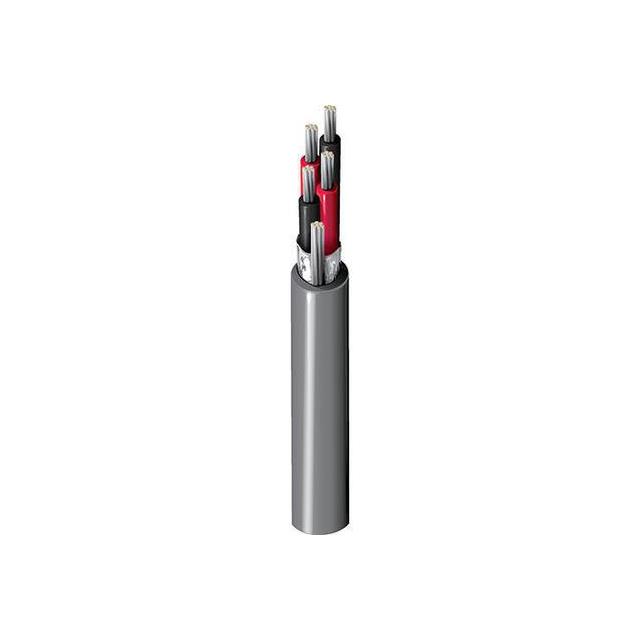

MULTI-PAIR 22COND 18AWG
| Part | Shield Coverage | Shield Material | Cable Type | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Features | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Length | Length | Ratings | Conductor Material | Conductor Insulation | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Pair | Instrumentation | -30 ░C | 105 ░C | Chrome | Direct Burial Drain Wire Ripcord UV Resistant | 18 AWG | 1.6 mm | 0.063 in | Foil | 152.4 m | 500 ft | UL Style 2464 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 | 30 AWG | 19 | Poly-Vinyl Chloride (PVC) |
Belden Inc. | 100 % | Aluminum | Multi-Pair | Instrumentation | -30 ░C | 105 ░C | Chrome | Direct Burial Drain Wire Ripcord UV Resistant | 18 AWG | 1.6 mm | 0.063 in | Foil | 304.8 m | 1000 ft | UL Style 2464 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 | 30 AWG | 19 | Poly-Vinyl Chloride (PVC) |
