BU-P67 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

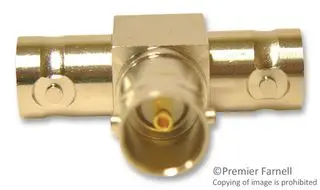

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, JACK, TEE ADAPTER, 75 OHM
| Part | Dielectric Material | Body Finish | Body Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Convert To (Adapter End) | Center Contact Plating | Style | Convert From (Adapter End) | Mounting Type | Fastening Type | Adapter Type | Center Gender | Impedance | Adapter Series | Conversion Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Beryllium Copper | 150 °C | -50 °C | BNC Jack Female Socket (2) | Gold | T-Shape | BNC Jack Female Socket | Free Hanging (In-Line) | Bayonet Lock | Jack to Jack | Female to Female | 75 Ohms | BNC to BNC Dual | Same Series | |

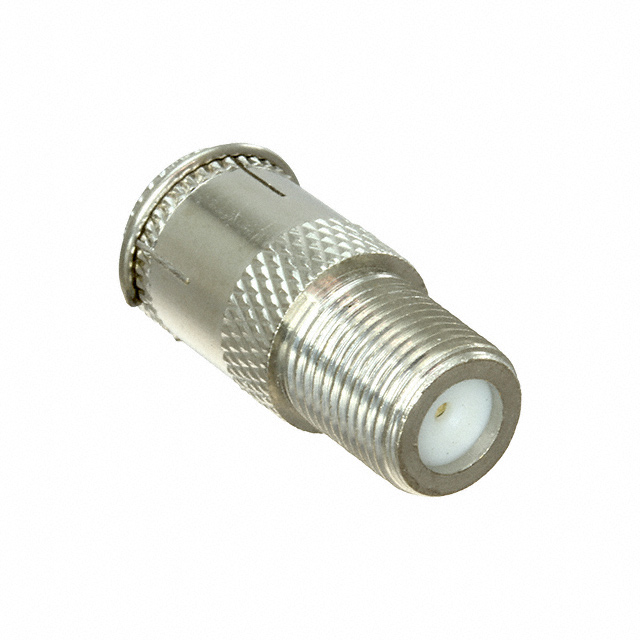

 Mueller Electric Co | Nickel | Brass | Brass | F Jack Female Socket | Nickel | Straight | F Plug Male Pin | Free Hanging (In-Line) | Snap-On Threaded | Plug to Jack | 75 Ohms | F to F | Same Series | 500 MHz |
