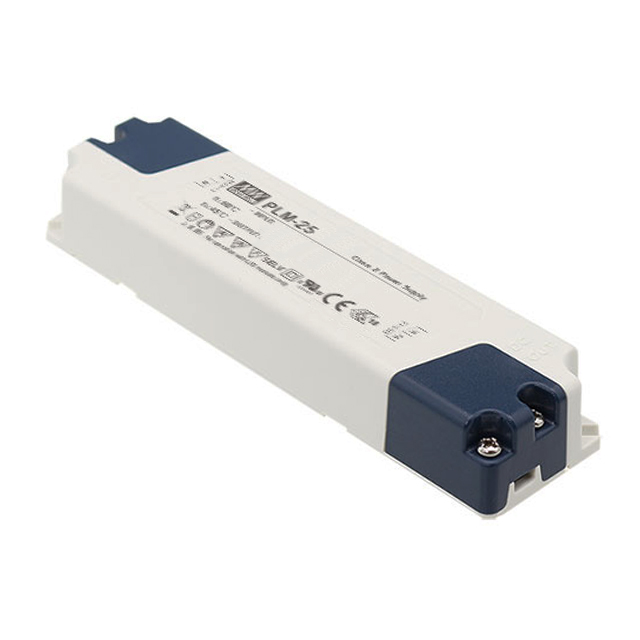

PLM-25 Series

Catalog

LED DRVR CC AC/DC 21-36V 700MA

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Type	Topology	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Features	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Termination Style

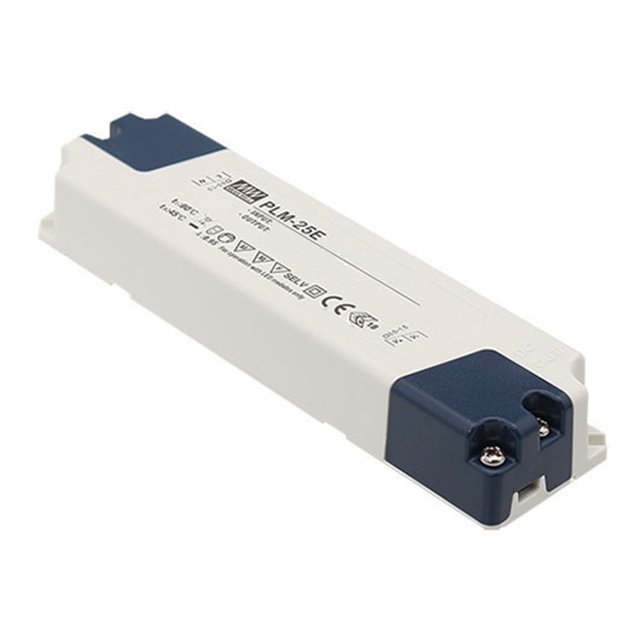

MEAN WELL USA Inc. PLM-25E-700	Chassis Mount	38 mm	1.5 "	0.87 in	5.71 "	145 mm	22 mm	25 W	1	295 VAC	3750 VDC	180 VAC	85 %	Constant Current	AC DC Converter	IP30	45 °C	-30 ░C	SCP	CB CCC CE ENEC	36 V	21 V	700 mA	Terminal Block
MEAN WELL USA Inc. PLM-25-500	Chassis Mount	38 mm	1.5 "	0.87 in	5.71 "	145 mm	22 mm	25 W	1	295 VAC	3750 VDC	110 VAC	86 %	Constant Current	AC DC Converter	IP30	45 °C	-30 ░C	SCP	CB CE cURus ENEC	50 V	30 V	500 mA	Terminal Block
MEAN WELL USA Inc. PLM-25-700	Chassis Mount	38 mm	1.5 "	0.87 in	5.71 "	145 mm	22 mm	25 W	1	295 VAC	3750 VDC	110 VAC	86 %	Constant Current	AC DC Converter	IP30	45 °C	-30 ░C	SCP	CB CE cURus ENEC	36 V	21 V	700 mA	Terminal Block
MEAN WELL USA Inc. PLM-25E-350	Chassis Mount	38 mm	1.5 "	0.87 in	5.71 "	145 mm	22 mm	25 W	1	295 VAC	3750 VDC	180 VAC	86 %	Constant Current	AC DC Converter	IP30	45 °C	-30 ░C	SCP	CB CCC CE ENEC	72 V	42 V	350 mA	Terminal Block
