R16127 Series

Catalog

N / STRAIGHT SQUARE FLANGE JACK

Part	Insertion Loss	Body Material	Mating Cycles	Voltage Rating	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Connector Style	Impedance	Mounting Type	Housing Color	Center Contact Material	Connector Type	Mounting Feature	Shield Termination	Fastening Type	Contact Termination	Ingress Protection	Cable Group
Radiall USA, Inc. R161277300W	0.15 dB	Brass	500	335 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Solder	Threaded	Solder
Radiall USA, Inc. R161277000W	0.15 dB	Brass	500	335 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof
Radiall USA, Inc. R161272000W	0.15 dB	Brass	500	1400 V	White Bronze	-55 C	155 C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof	144 165 213 214 216 225 393 RG-11
Radiall USA, Inc. R161278000W	0.15 dB	Brass	500	1400 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof	RG-401 (.250" Semi Rigid)

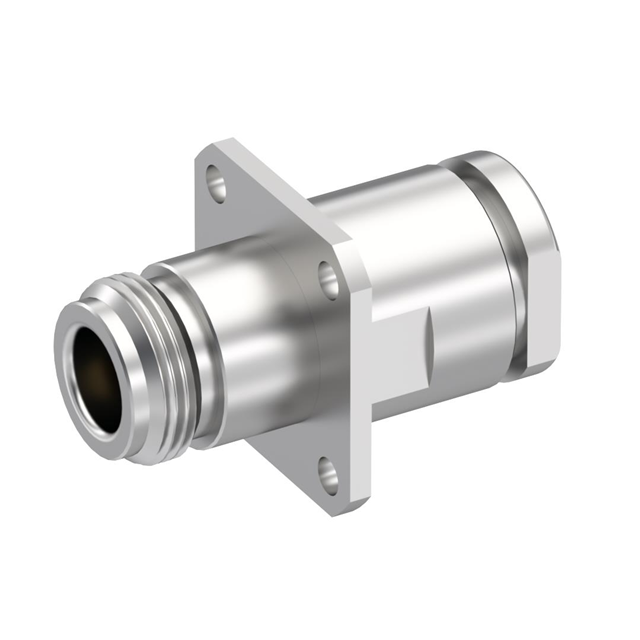

Radiall USA, Inc. R161270000	0.15 dB	Brass	500	1400 V	White Bronze	-55 C	155 C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof	144 165 213 214 216 225 393 RG-11

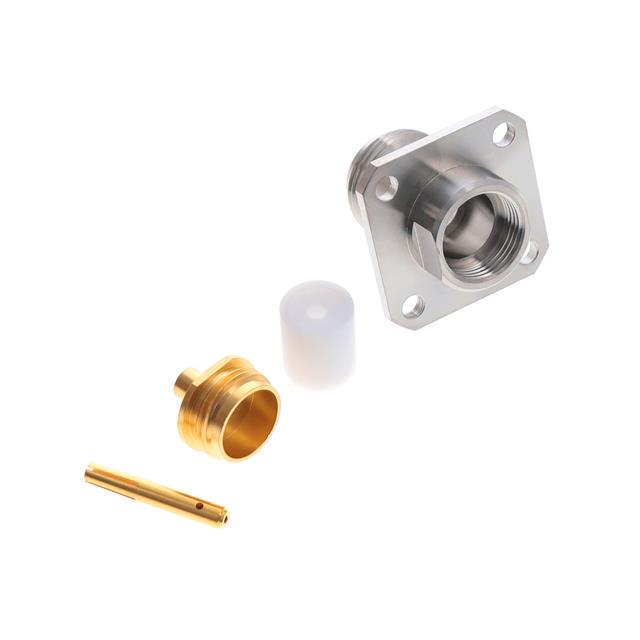

Radiall USA, Inc. R161277300	0.15 dB	Brass	500	335 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Solder	Threaded	Solder

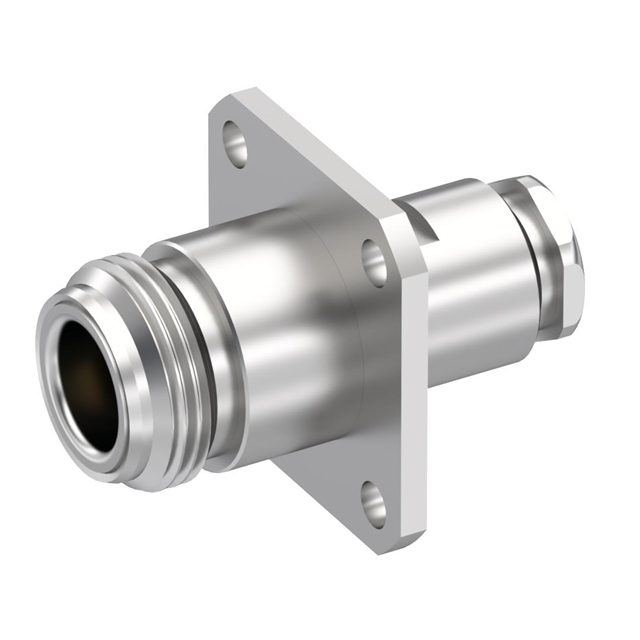

Radiall USA, Inc. R161278000	0.15 dB	Brass	500	1400 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof	RG-401 (.250" Semi Rigid)

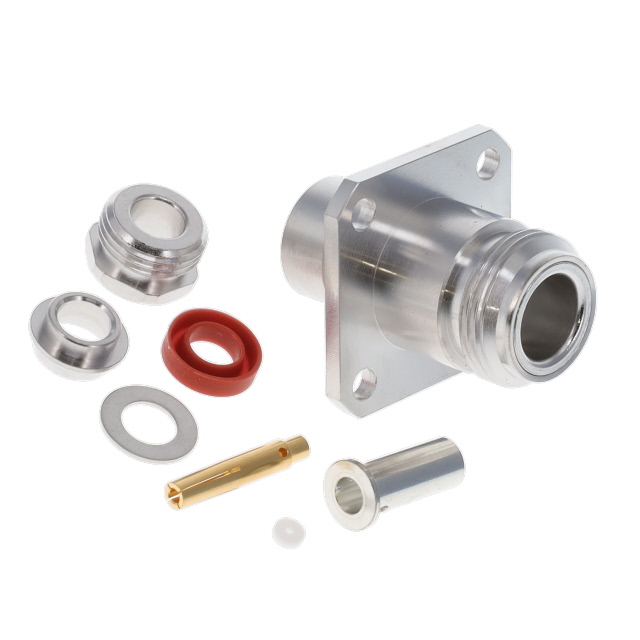

Radiall USA, Inc. R161277000	0.15 dB	Brass	500	335 V	White Bronze	-55 C	105 ░C	Polytetrafluoroethylene (PTFE)	Gold	11 GHz	1	N Type	50 Ohms	Panel Mount	Silver	Beryllium Copper	Female Socket Jack	Flange	Clamp	Threaded	Solder	IP67 - Dust Tight Waterproof
