29K501 Series
Manufacturer: Rosenberger
Beta
⌘K

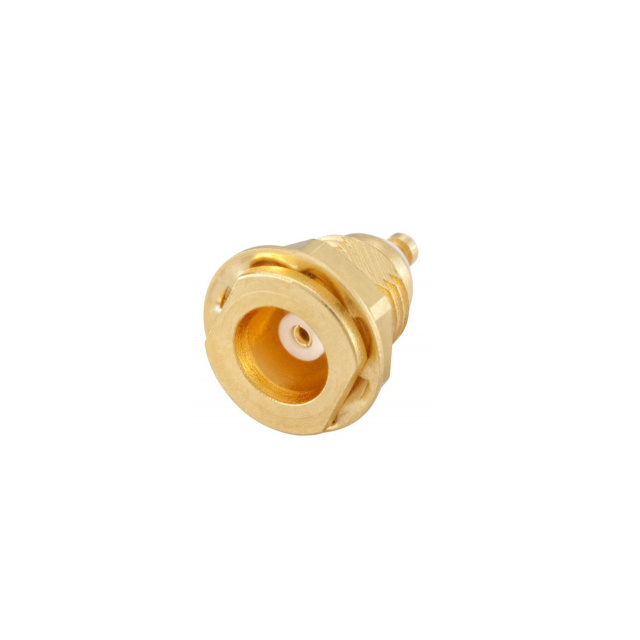

MCX BULKHEAD JACK
| Part | Dielectric Material | Center Contact Plating | Mating Cycles | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Mounting Feature | Frequency - Max [Max] | Shield Termination | Mounting Type | Connector Type | Contact Termination | Connector Style | Impedance | Center Contact Material | Fastening Type | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 500 | 335 V | 155 C | -55 C | Brass | Gold | Bulkhead | 6000 MHz | Solder | Panel Mount | Female Socket Jack | Solder | MCX | 50 Ohms | Beryllium Copper | Snap-On | Gold | 1 |
