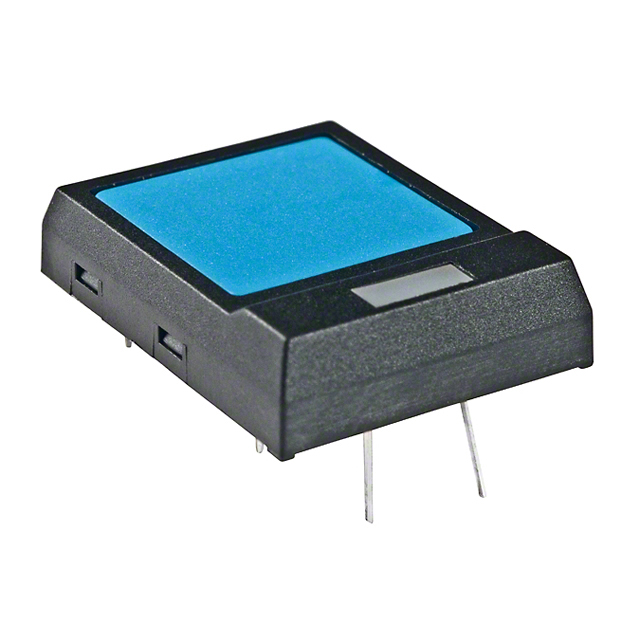

JF15RP1G Series
Manufacturer: NKK Switches
Beta
⌘K
ILLUMINATED ULTRA-THIN PROCESS SEALED TACTILE
| Part | Mechanical Life | Actuator Material | Switch Travel | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) | Features | Termination Style | Outline [x] | Outline [y] | Actuator Orientation | Mounting Type | Illumination | Actuator Type | Contact Rating @ Voltage | Actuator Height off PCB, Vertical | Illumination Type, Color | Operating Force | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 500000 Cycles | Polyamide (PA) Nylon | 0.4 mm | Off-Mom | -25 °C | 70 °C | 2 VDC | Process Sealed | PC Pin | 22.8 mm | 17.7 mm | Top Actuated | Through Hole | Illuminated | Square Button | 0.05 A 24 VDC | 5.08 mm | Green LED | 300 gf | SPST-NO |
 NKK Switches | 500000 Cycles | Polyamide (PA) Nylon | 0.4 mm | Off-Mom | -25 °C | 70 °C | 2 VDC | Process Sealed | PC Pin | 22.8 mm | 17.7 mm | Top Actuated | Through Hole | Illuminated | Square Button | 0.05 A 24 VDC | 5.08 mm | LED Red | 300 gf | SPST-NO |
