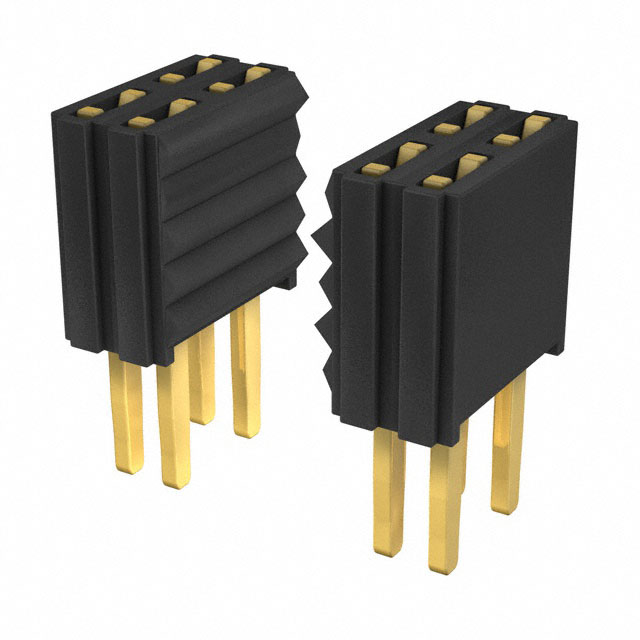

M52-510 Series

Catalog

25+25 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Part	Insulation Material	Applications	Contact Material	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Termination	Insulation Color	Insulation Height [z]	Insulation Height [z]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows [custom]	Contact Finish - Mating	Mounting Type

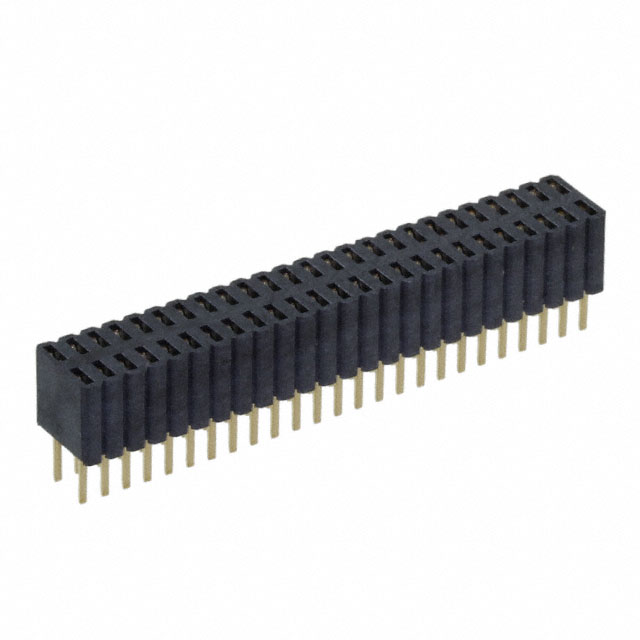

Harwin Inc. M52-5102545	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	50	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole
Harwin Inc. M52-5102045	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	40	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole

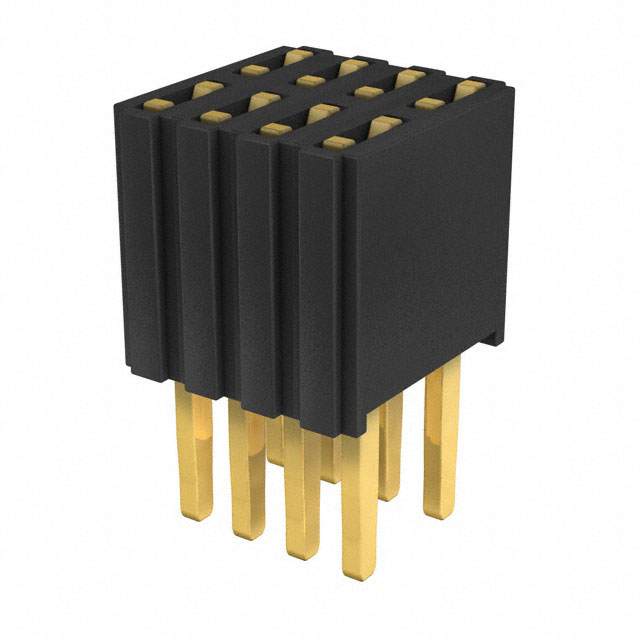

Harwin Inc. M52-5100445	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	8	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole
Harwin Inc. M52-5104045	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	80	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole

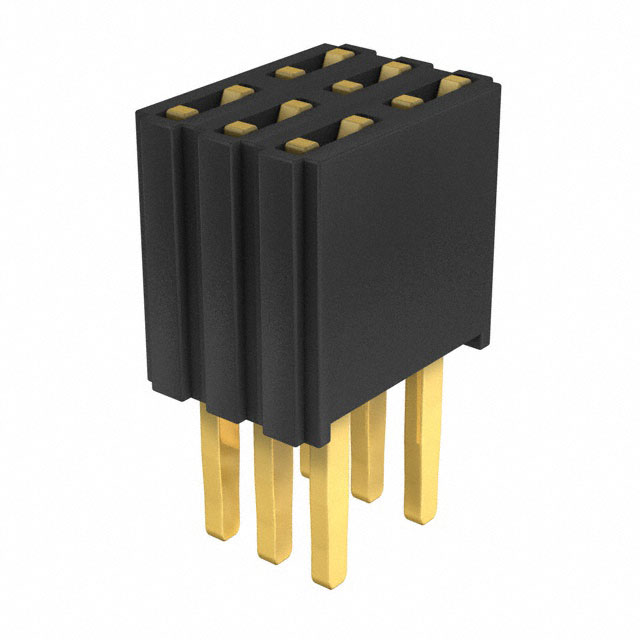

Harwin Inc. M52-5100345	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	6	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole
Harwin Inc. M52-5101045	Nylon 6T Polyamide (PA6T)	General Purpose Medical Telecommunications	Phosphor Bronze	Rectangular	0.118 in	3 mm	Forked	All	0.1 in	2.54 mm	UL94 V-0	1.27 mm	0.05 in	20	Solder	Black	0.181 in	4.6 mm	Push-Pull	-40 C	105 ░C	Receptacle	2	Gold	Through Hole
