0978-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

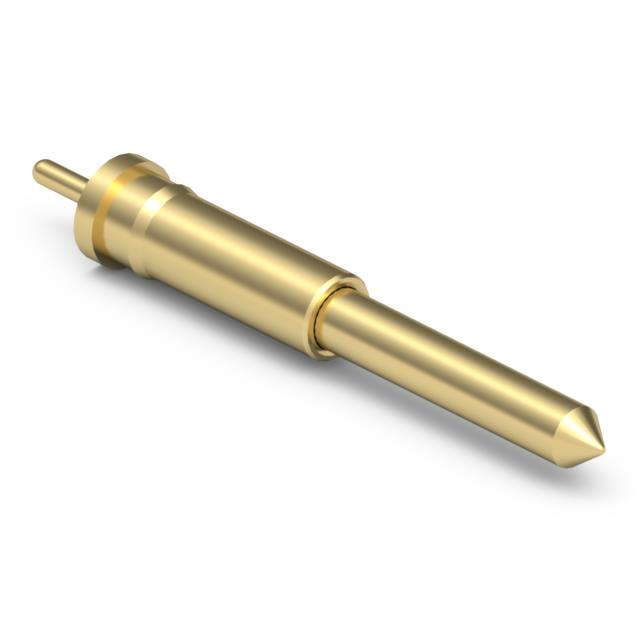

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Working Height | Minimum Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Contact Type | Contact Finish | Contact Material | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 9.55 mm | 0.376 in | 10.95 mm | 0.431 in | 10.25 mm | 0.404 in | 5.2 A | 20 µin | 0.51 µm | 1000000 | 10 gf | 0.072 in | 1.83 mm | 0.042 in | 1.07 mm | Through Hole | Sleeve & Plunger (Pogo Pins) | Gold | Brass Alloy | 60 gf |
