1658046 Series

Catalog

MSB0.80PL11ASY120FL,GP,F,-TR

Part	Features	Number of Rows [custom]	Mated Stacking Heights	Pitch	Pitch	Contact Finish Thickness	Contact Finish	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Positions	Mounting Type	Number of Positions [custom]
TE Connectivity AMP Connectors 4-1658046-3	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Plug Outer Shroud Contacts	120	Surface Mount
TE Connectivity AMP Connectors 2-1658046-2	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Plug Outer Shroud Contacts	80	Surface Mount
TE Connectivity AMP Connectors 7-1658046-3	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Differential Pair Array Male		Surface Mount	84
TE Connectivity AMP Connectors 6-1658046-1	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Plug Outer Shroud Contacts	40	Surface Mount

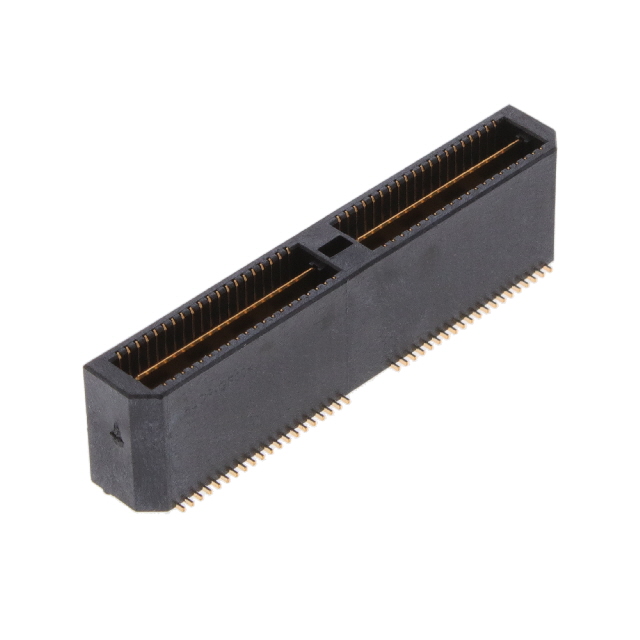

TE Connectivity AMP Connectors 1658046-2	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Plug Outer Shroud Contacts	80	Surface Mount
TE Connectivity AMP Connectors 1658046-5	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Plug Outer Shroud Contacts	200	Surface Mount
TE Connectivity AMP Connectors 5-1658046-3	Board Guide Ground Bus (Plane)	2	11 mm	0.8 mm	0.031 in	Flash	Gold	0.404 in	10.27 mm	Differential Pair Array Male		Surface Mount	84
