HLMP-7040 Series

Catalog

LED GREEN DIFFUSED YOKE LEAD SMD

Part	Lens Style	Mounting Type	Millicandela Rating	Supplier Device Package	Lens Size [diameter]	Color	Viewing Angle	Package / Case	Lens Transparency	Configuration	Voltage - Forward (Vf) (Typ)	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Current - Test	Wavelength - Dominant	Wavelength - Peak	Package / Case	Voltage Rating	Current	Lens Type
Broadcom Limited HLMP-7040-D0021	Round with Domed Top	Surface Mount	0.6 mcd	Yoke Lead	1.78 mm	Green	90 °	2-SMD Yoke Bend	Diffused	Standard	2.1 V	Green	2.08 mm	2.21 mm	2.92 mm	2 mA	569 nm	565 nm

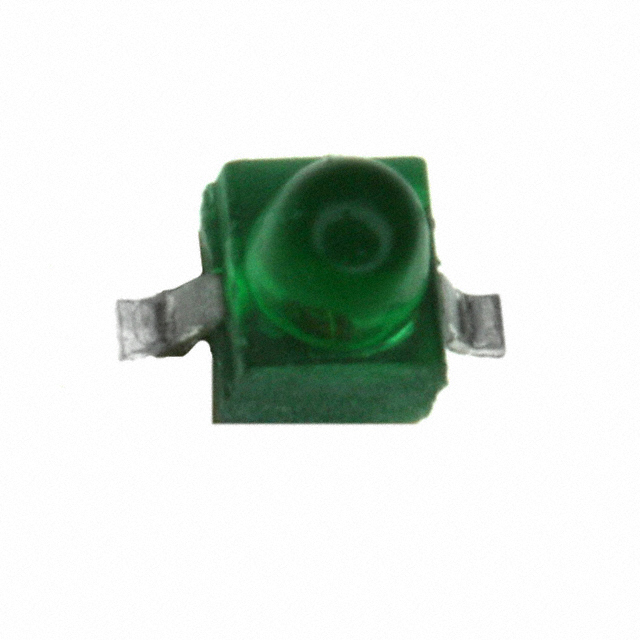

Broadcom Limited HLMP-7040-D0011	Round with Domed Top	Surface Mount	0.6 mcd	Gull Wing	1.78 mm	Green	90 °	2-SMD Gull Wing	Diffused	Standard	2.1 V	Green	2.08 mm	2.21 mm	2.92 mm	2 mA	569 nm	565 nm
Broadcom Limited HLMP-7040-D001L	Round with Domed Top	Through Hole	0.6 mcd	Axial	1.78 mm	Green	90 °	Axial Right Angle Bend	Diffused	Standard	2.1 V	Green	2.08 mm	2.21 mm	2.92 mm	2 mA	569 nm	565 nm	2.54 mm
Broadcom Limited HLMP-7040-D0010	Round with Domed Top	Right Angle Surface Mount	0.6 mcd		1.91 mm Dia	Green	90 °			Single								565 nm		5 V	30 mA	Diffused Tinted
