TLHB-V88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

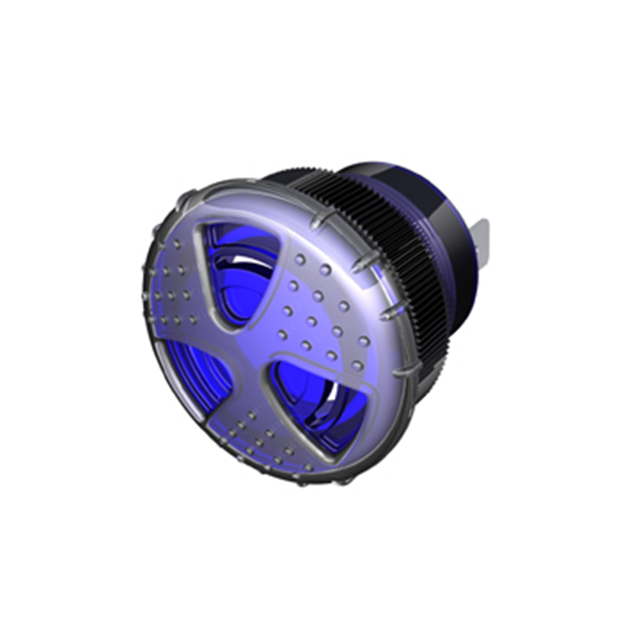

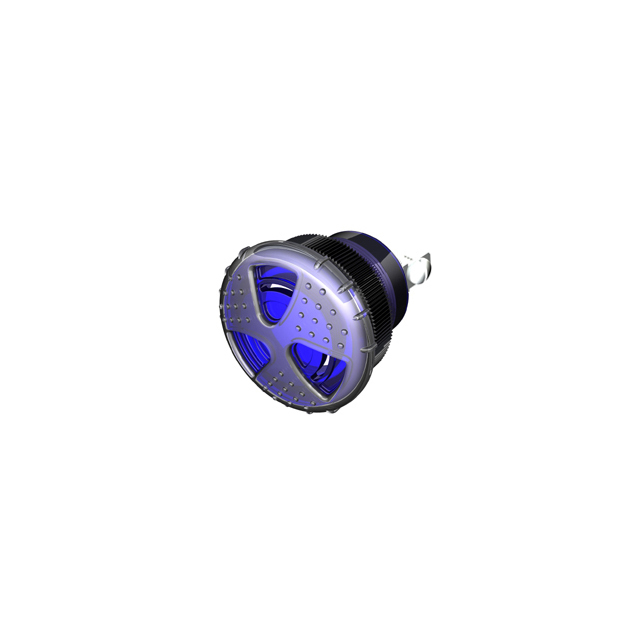

BUZZER 35.81MM PNL MNT
| Part | Ingress Protection | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Driver Circuitry | Frequency | Operating Mode | Input Type | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Approval Agency | Mounting Type | Port Location | Termination | Termination | Termination | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Range [Max] | Voltage Range [Min] | Sound Pressure Level (SPL) | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.25 " | 31.75 mm | Indicator Internally Driven | 2.9 kHz | Fast Pulse | DC | 50 mA | 110 mA | UL UR | Panel Mount | Top | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | 30 V | 9 V | 103 dB | |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.25 " | 31.75 mm | Indicator Internally Driven | 2.9 kHz | Pulse Slow | DC | 50 mA | 110 mA | UL UR | Panel Mount | Top | 0.25 " | Quick Connect Tab | 6.35 mm | 1.409 in | 30 V | 9 V | 103 dB | 35.8 mm | |
 Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.25 " | 31.75 mm | Indicator Internally Driven | 2.9 kHz | Fast Pulse | DC | 50 mA | 110 mA | UL UR | Panel Mount | Top | 0.25 " | Quick Connect Tab | 6.35 mm | 1.41 in | 35.81 mm | 30 V | 9 V | 103 dB | |
Floyd Bell Inc | IP68 - Dust Tight Waterproof | 1.25 " | 31.75 mm | Indicator Internally Driven | 2.9 kHz | Pulse Slow | DC | 50 mA | 110 mA | UL UR | Panel Mount | Top | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | 1.409 in | 30 V | 9 V | 103 dB | 35.8 mm |
