4310-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness [Max]	Board Thickness [Min]	Board Thickness [Max]	Board Thickness [Min]	Socket Depth	Socket Depth	Contact Material	Tail Type	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size	Accepts Square Pin Size	Flange Diameter [diameter]	Flange Diameter [diameter]

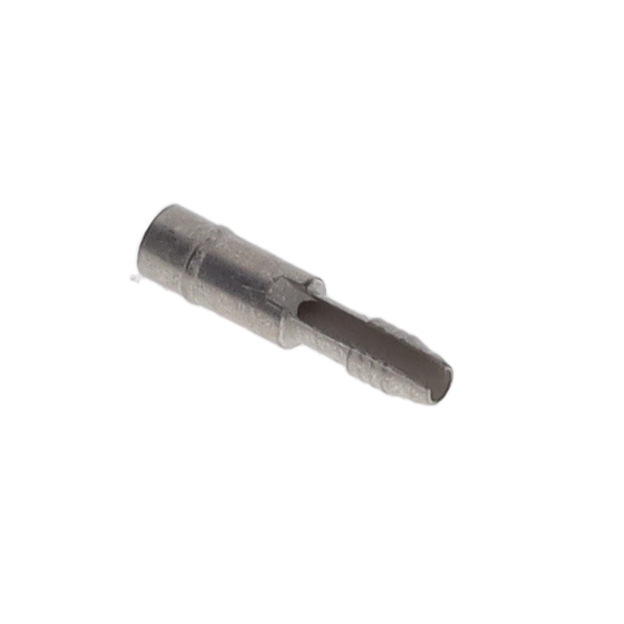

Mill-Max Manufacturing Corp. 4310-0-31-80-43-14-04-0	-55 C	125 °C	3.3 mm	2.29 mm	0.13 "	0.09 "	2.54 mm	0.1 in	Beryllium Copper	No Tail	Press-Fit	0.4 "	10.16 mm	Gold	0.25 Ám	10 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	6.17 mm	0.243 in	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 4310-0-31-15-43-27-04-0	-55 C	125 °C	3.3 mm	2.29 mm	0.13 "	0.09 "	2.54 mm	0.1 in	Beryllium Copper	No Tail	Press-Fit	0.04 in	1.02 mm	Gold	0.76 Ám	30 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	6.17 mm	0.243 in	0.025 in	0.64 mm	1.4 mm	0.055 in
Mill-Max Manufacturing Corp. 4310-0-31-80-43-27-04-0	-55 C	125 °C	3.3 mm	2.29 mm	0.13 "	0.09 "	2.54 mm	0.1 in	Beryllium Copper	No Tail	Press-Fit	0.4 "	10.16 mm	Gold	0.76 Ám	30 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	6.17 mm	0.243 in	0.025 in	0.64 mm
