16_MMBX-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

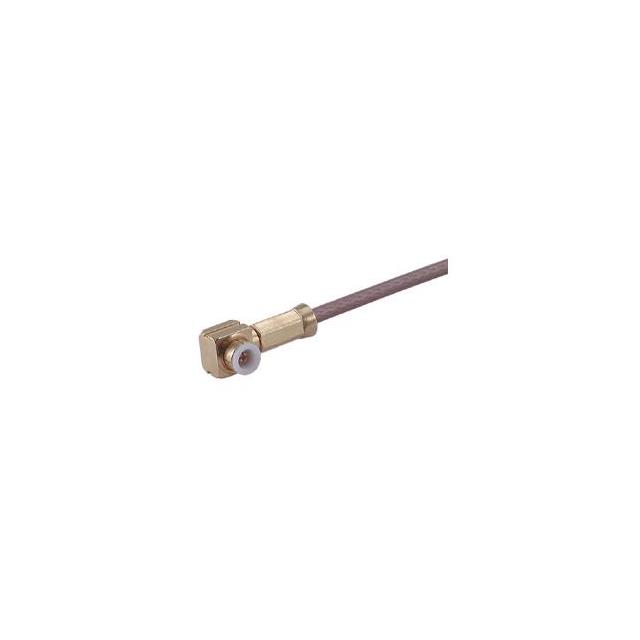

16_MMBX-50-2-1/111_NE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Finish | Center Contact Plating | Voltage Rating | Body Material | Fastening Type | Frequency - Max [Max] | Impedance | Shield Termination | Center Contact Material | Housing Color | Number of Ports | Contact Termination | Connector Style | Mounting Type | Cable Group | Connector Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 250 V | Brass | Snap-On | 12.4 GHz | 50 Ohms | Crimp | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | 188 316 RG-174 | Plug Male Pin | |
 Huber+Suhner, Inc. | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 330 VDC | Beryllium Copper | Snap-On | 12.4 GHz | 50 Ohms | Crimp | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | RD-316 | Plug Male Pin | |
 Huber+Suhner, Inc. | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 330 VDC | Beryllium Copper | Snap-On | 12.4 GHz | 50 Ohms | Solder | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | RG-405 (.086 Semi Rigid) | Plug Male Pin | |
 Huber+Suhner, Inc. | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 330 VDC | Beryllium Copper | Snap-On | 12.4 GHz | 50 Ohms | Crimp | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | RD-316 | Plug Male Pin | |
 Huber+Suhner, Inc. | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | Gold | 330 VDC | Beryllium Copper | Snap-On | 12.4 GHz | 50 Ohms | Solder | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | Plug Male Pin | ||
Huber+Suhner, Inc. | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | Gold | 250 V | Brass | Snap-On | 12.4 GHz | 50 Ohms | Crimp | Beryllium Copper | Gold | 1 | Solder | MMBX | Free Hanging (In-Line) Right Angle | RG-178 | Plug Male Pin | 196 |
