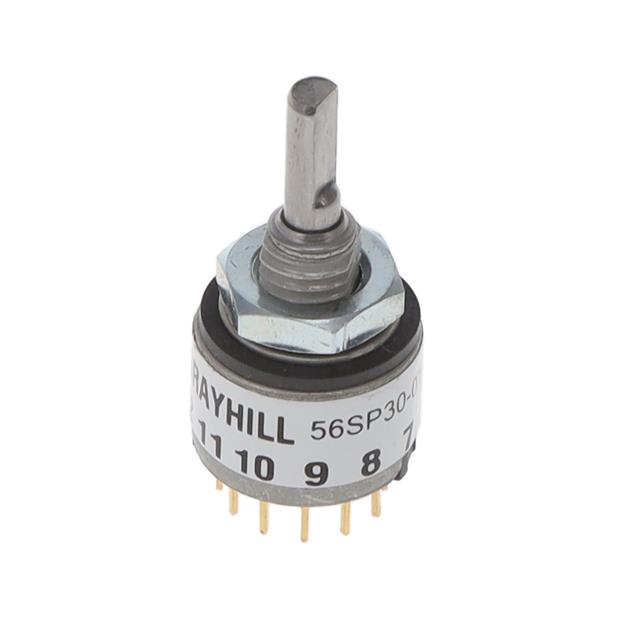

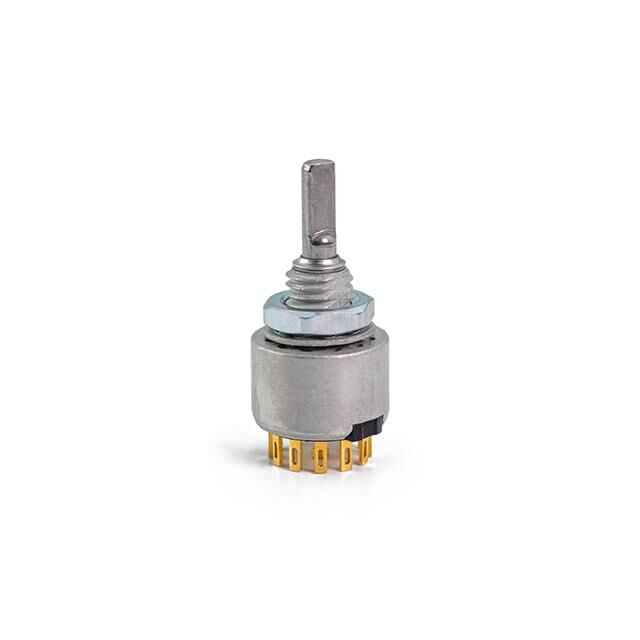

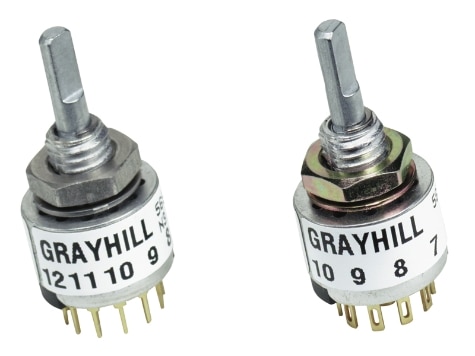

56SP30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ROTARY SWITCH,STRAIGHT,NUMBER OF POSITIONS:4,PC TAIL TERMINAL,ROTARY SHAFT,PCB HOLE COUNT:12
| Part | Mounting Type | Depth Behind Panel [z] | Angle of Throw | Voltage Rating - AC | Voltage Rating - DC | Contact Finish | Termination Style | Number of Decks [custom] | Contact Material | Features | Index Stops | Number of Positions | Actuator Type | Contact Timing | Actuator Length [x] | Current Rating (Amps) | Number of Poles per Deck | Circuit per Deck |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 4 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 9.53 mm | 200 mA | 1 | SP4T |
 Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 4 | Flatted (3.17mm Dia) | Shorting (MBB) | 9.53 mm | 200 mA | 2 | DP4T |
 Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | Flatted (3.17mm Dia) | Shorting (MBB) | 9.53 mm | 200 mA | 4P3T | ||
 Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 4 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 9.53 mm | 200 mA | 1 | SP4T |
Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 2 | Flatted (3.17mm Dia) | Shorting (MBB) | 9.53 mm | 200 mA | 4PDT | |
Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 4 | Flatted (3.17mm Dia) | Shorting (MBB) | 9.53 mm | 200 mA | 2 | DP4T |
Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 4 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 9.53 mm | 200 mA | 2 | DP4T |
Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 2 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 9.53 mm | 200 mA | 1 | SPDT |
 Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Fixed | 12 | Flatted (3.17mm Dia) | Non-Shorting (BBM) | 9.53 mm | 200 mA | 1 | SP12T |
Grayhill Inc. | Panel Mount Through Hole | 9.58 mm | 30 ° | 115 V | 30 V | Silver | PC Pin | 1 | Brass | Shaft and Panel Sealed | Continuous | 12 | Flatted (3.17mm Dia) | Shorting (MBB) | 9.53 mm | 200 mA | 1 | SP12T |
