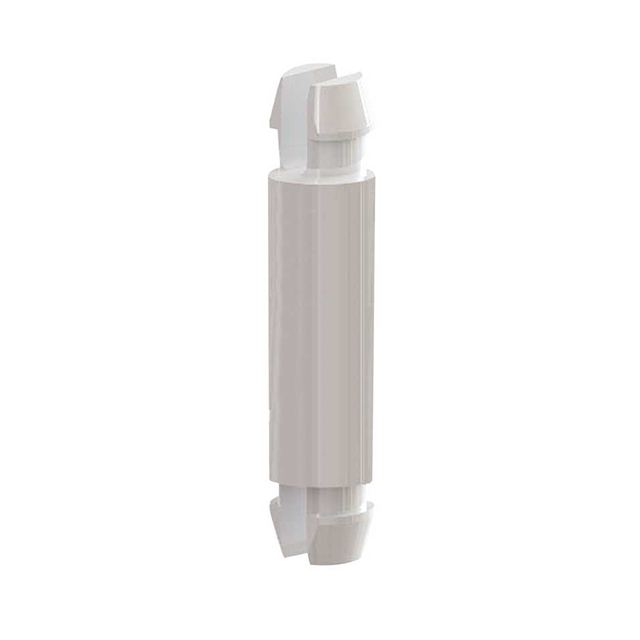

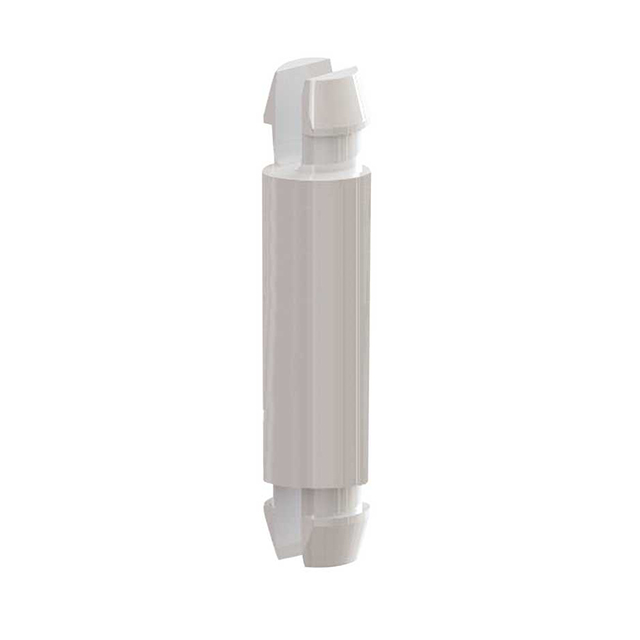

DLMSP Series

Catalog

PCB SPACER SUPPORT, NYLON 6.6, 25.4MM

Part	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Mounting Type	Material	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Essentra Components DLMSPM-16-01	32.6 mm	1.283 in	3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	25.4 mm	1 in
Essentra Components DLMSPM-24-01	45.3 mm	1.783 in	3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	38.1 mm	1.5 in
Essentra Components DLMSP-8-01			3.86 mm	0.152 in		0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in				Snap Lock	Nylon	12.7 mm	0.5 in	0.5 in	0.152 in	3.86 mm
Essentra Components DLMSP-7-01	18.3 mm	0.72 in	3.86 mm	0.152 in		0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in				Snap Lock	Nylon	11.13 mm	0.438 in	0.4375 "	0.152 in	3.86 mm

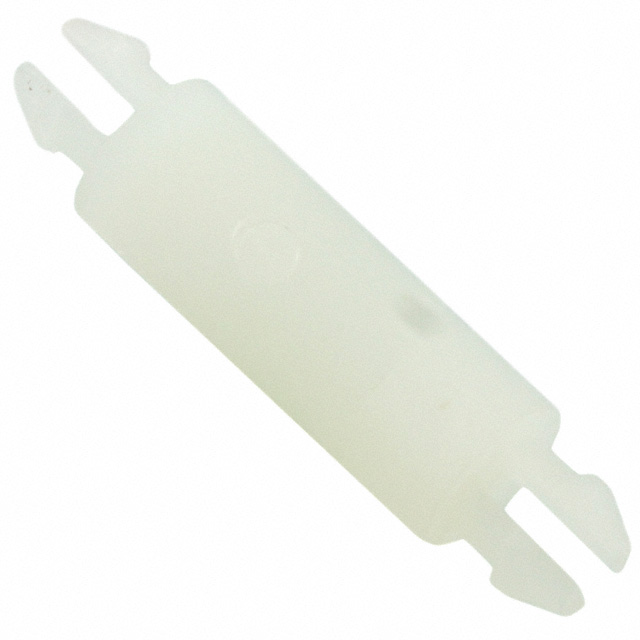

Essentra Components DLMSPM-8-01			3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	12.7 mm	0.5 in	0.5 in

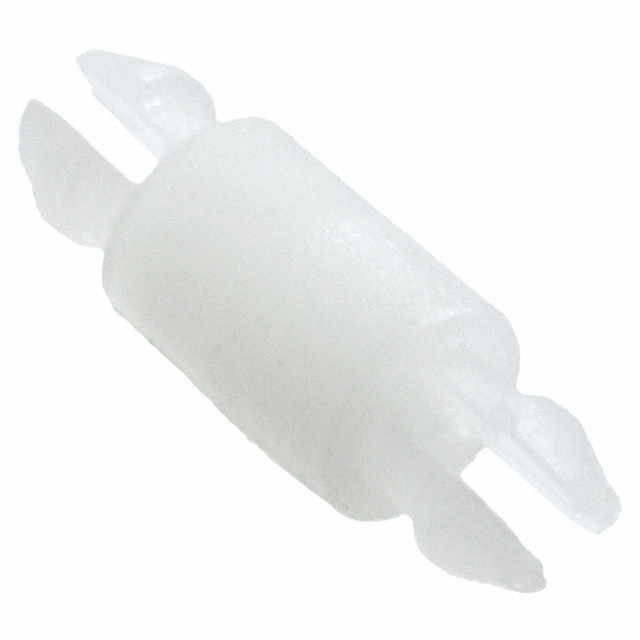

Essentra Components DLMSPM-4-01	13.6 mm	0.535 in	3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	0.25 in	6.35 mm
Essentra Components DLMSP-3-01	12 mm	0.472 in	3.86 mm	0.152 in		0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in				Snap Lock	Nylon	0.1875 in	0.188 in		0.152 in	3.86 mm
Essentra Components DLMSP-16-01	32.6 mm	1.283 in	3.86 mm	0.152 in		0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in				Snap Lock	Nylon	25.4 mm	1 in		0.152 in	3.86 mm
Essentra Components DLMSPM-18-01	35.8 mm	1.409 in	3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	28.58 mm	1.125 in
Essentra Components DLMSPM-12-01	26.3 mm	1.035 in	3.18 mm	0.125 in	0.125 in	0.062 "	0.0625 "	1.57 mm	Snap Lock	1.57 mm	0.062 in	0.0625 in	0.125 in	0.125 in	3.18 mm	Snap Lock	Nylon	19.05 mm	0.75 "	0.75 "
