858-D04 Series
Manufacturer: NorComp Inc.
Beta
⌘K

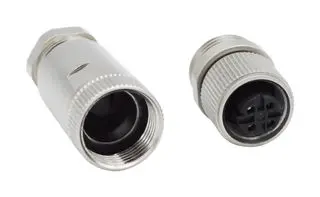

M12 SENSOR CONN, FEMALE, 4POS, CABLE ROHS COMPLIANT: YES
| Part | Connector Type | Current Rating (Amps) | Color | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Mounting Type | Shell Finish | Ingress Protection | Material Flammability Rating | Insert Material | Shell Size - Insert | Backshell Material, Plating | Number of Positions | Fastening Type | Primary Material | Voltage Rating | Contact Finish - Mating | Shell Material | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish Thickness - Mating | Shielding | Cable Opening | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Plug Female Sockets | 4 A | Silver | D | 0.25 µm | 10 µin | Backshell Coupling Nut Strain Relief | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-4 | Aluminum Alloy Nickel | 4 | Threaded | Metal | 250 V | Gold | Aluminum Alloy | Industrial Medical | 85 °C | -40 C | Brass | ||||
NorComp Inc. | Plug Female Sockets | 4 A | Black Silver | D | Coupling Nut | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | UL94 V-0 | Thermoplastic Polyurethane (TPU) | M12-4 | 4 | Threaded | Metal | 250 V | Gold | Brass | Industrial Medical | 85 °C | -40 C | Brass | Flash | Shielded | |||||
 NorComp Inc. | Plug Female Sockets | 4 A | Black Silver | D | 0.25 µm | 10 µin | Coupling Nut | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | UL94 V-0 | Thermoplastic Polyurethane (TPU) | M12-4 | 4 | Threaded | Metal | 250 V | Gold | Brass | Industrial Medical | 85 °C | -40 C | Brass | Unshielded | ||||
NorComp Inc. | Plug Female Sockets | 4 A | Silver | D | Backshell Coupling Nut Strain Relief | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-4 | Aluminum Alloy Nickel | 4 | Threaded | Metal | 250 V | Gold | Aluminum Alloy | Industrial Medical | 85 °C | -40 C | Brass | Flash | |||||
NorComp Inc. | Receptacle Male Pins | 4 A | Silver | D | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) | M12-4 | 4 | Threaded | Metal | 250 V | Gold | Brass | Industrial Medical | 85 °C | -40 C | Brass | Flash | Shielded | 0.394 in | 10 mm |
