79248 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

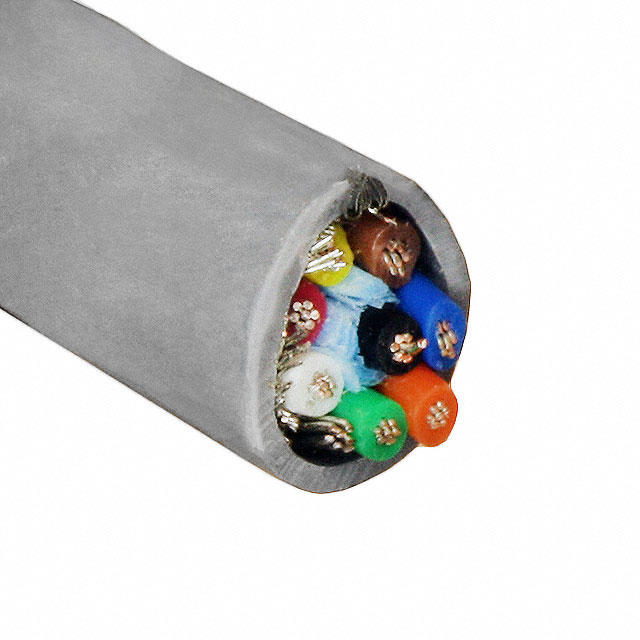

CABLE 8CON 22AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Number of Conductors [custom] | Wire Gauge | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Voltage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 8 | 22 AWG | Polyphenylene Ether Modified (mPPE) | ISO 10993 | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | 7.52 mm | 0.296 in | Multi-Conductor | Braid Foil | -40 C | 105 ░C | 100 ft | 30.5 m | 600 V | Slate | 34 AWG | 19 | Copper Tinned |
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 8 | 22 AWG | Polyphenylene Ether Modified (mPPE) | ISO 10993 | 0.035 in | 0.889 mm | Polyphenylene Ether Modified (mPPE) | Biological Compatibility | 7.52 mm | 0.296 in | Multi-Conductor | Braid Foil | -40 C | 105 ░C | 600 V | Slate | 34 AWG | 19 | Copper Tinned |
