LEX263 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 43.94-55.88MM M63

Part	Thread Length	Thread Length	Material	Type	Includes	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size	Panel Hole Size	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection
Pflitsch LEX263MSHTS	0.63 in	16 mm	Brass Nickel Plated	Cable Gland	O-Ring	Silver	-60 °C	130 °C	55.88 mm	2.2 in	2.48 in	63 mm	M63x1.5	1.73 in	43.94 mm	IP66 IP68

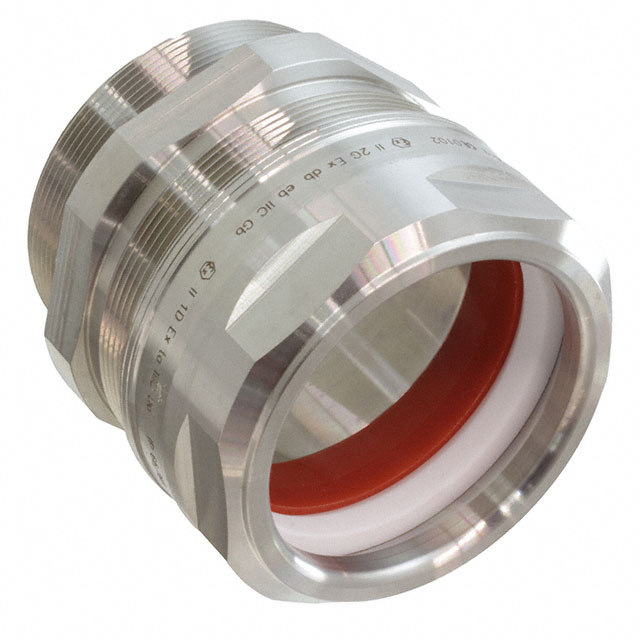

Pflitsch LEX263VA/316LHTS	0.63 in	16 mm	Stainless Steel	Cable Gland	O-Ring	Silver	-60 °C	130 °C	56 mm	2.205 in	2.48 in	63 mm	M63x1.5	1.732 in	44 mm	IP66 IP68
