96577 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 45.97-54.1MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Color	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Type	Panel Hole Size	Panel Hole Size	Thread Size	Thread Length	Thread Length	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

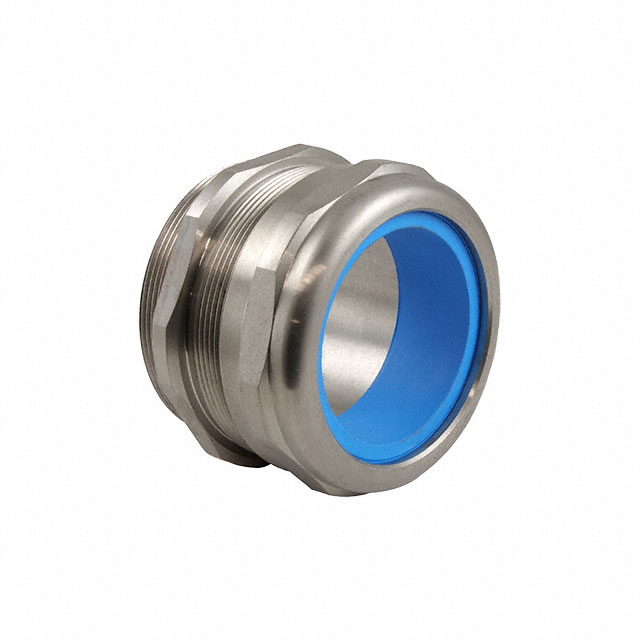

Pflitsch 96577.7	500 °C	-60 °C	Stainless Steel	Silver	54.1 mm	2.13 in	45.97 mm	1.81 in	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	2.48 in	63 mm	M63x1.5	0.39 in	9.91 mm	Sealing Ring

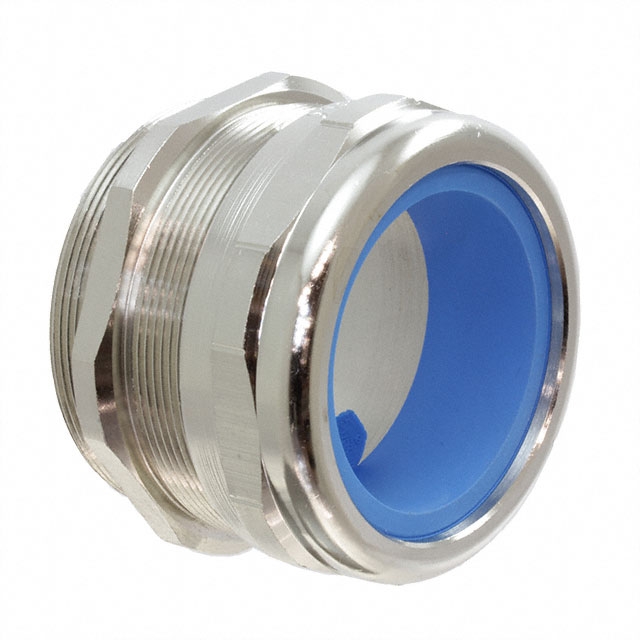

Pflitsch 96577.6	300 °C	-40 C	Brass Nickel Plated	Silver	54.1 mm	2.13 in	45.97 mm	1.81 in	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	2.48 in	63 mm	M63x1.5	0.39 in	9.91 mm	Sealing Ring

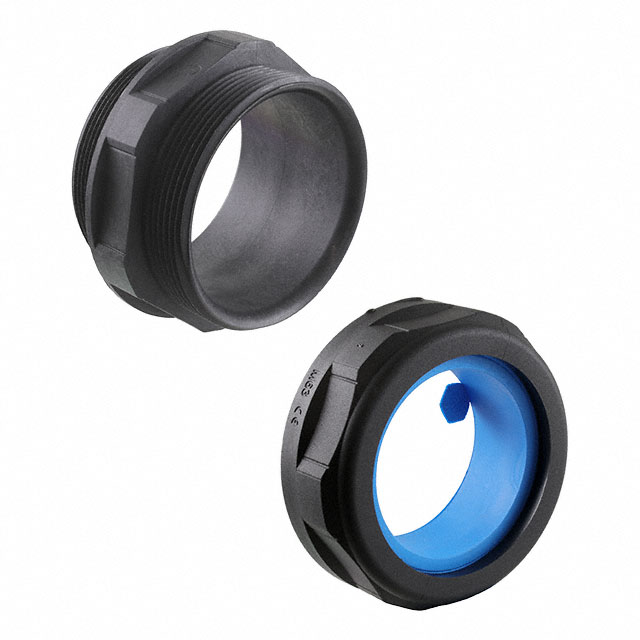

Pflitsch 96577.1	100 °C	-20 ░C	Polyamide (PA) Nylon	Black	54.1 mm	2.13 in	45.97 mm	1.81 in	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	2.48 in	63 mm	M63x1.5	0.39 in	9.91 mm
Pflitsch 96577.0	100 °C	-20 ░C	Polyamide (PA) Nylon	Light Gray	54.1 mm	2.13 in	45.97 mm	1.81 in	IP68 - Dust Tight Waterproof NEMA 4X	Cable Feedthrough	2.48 in	63 mm	M63x1.5	0.39 in	9.91 mm
Pflitsch 96577.6/15	300 °C	-40 C	Brass Nickel Plated	Silver	54.1 mm	2.13 in				Cable Feedthrough	2.48 in	63 mm	M63x1.5			Sealing Ring	41 mm	1.614 in
