8332 Series
Manufacturer: Belden Inc.
Beta
⌘K

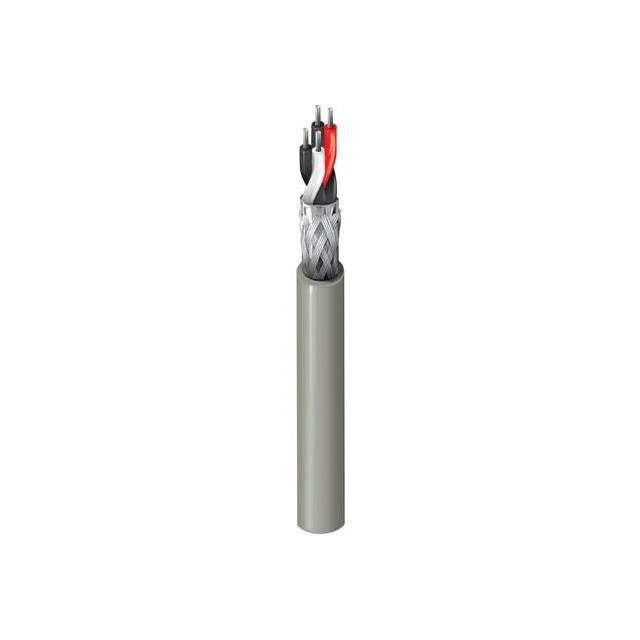

MULTI-PAIR 4COND 24AWG
| Part | Shield Material | Shield Coverage | Usage | Number of Conductors | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Ratings | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Length | Length | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Computer | 4 | 24 AWG | Braid Foil | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Multi-Pair | 80 °C | -30 ░C | Copper Tinned | UL Style 2464 | Chrome | 7 | 32 AWG | 300 VDC | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | ||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Computer | 4 | 24 AWG | Braid Foil | 0.25 " | 6.35 mm | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | Multi-Pair | 80 °C | -30 ░C | Copper Tinned | UL Style 2464 | Chrome | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
