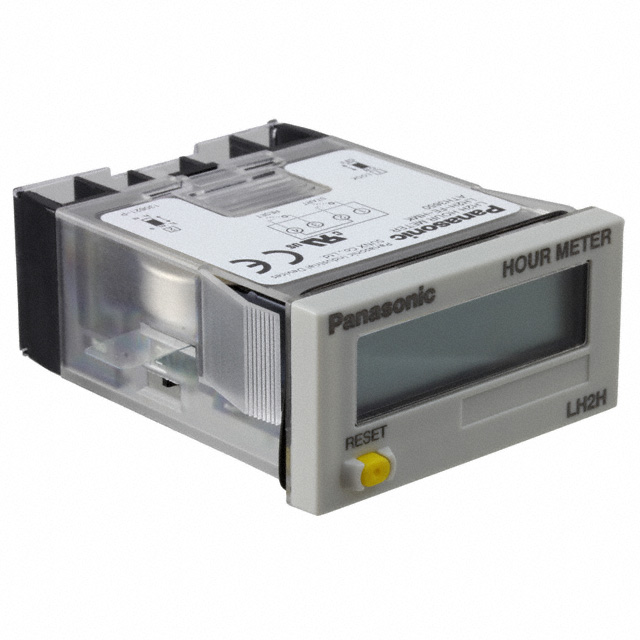

LH2H Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

COUNTER LCD 7 CHAR PANEL MOUNT

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Time Format	Time Format	Ingress Protection	Type	Reset	Display Type	Input Type	Display Characters - Height [z]	Display Characters - Height [z]	Voltage - Supply	Number of Characters Per Row	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Mode	Time Format	Voltage - Supply	Output Type
Panasonic Industrial Automation Sales LH2H-F-DHK-FV	55 °C	-10 °C	3999day23.9hrs	999999.9 hrs	IP66	Time Counter (Hour Meter)	External Front Panel	LCD - Black Characters	Voltage	8.7 mm	0.343 in	None Required (Battery Included)	7	Screw Terminal	22.2 mm	45 mm	Up
Panasonic Industrial Automation Sales LH2H-FE-HMK-FV
Panasonic Industrial Automation Sales LH2H-F-HMS-DL-NB
Panasonic Industrial Automation Sales LH2HP-FEW-DHKB-DC24V
Panasonic Industrial Automation Sales LH2H-F-DHK	55 °C	-10 °C	3999day23.9hrs	999999.9 hrs	IP66	Time Counter (Hour Meter)	External Front Panel	LCD - Black Characters	No Voltage	8.7 mm	0.343 in	None Required (Battery Included)	7	Screw Terminal	22.2 mm	45 mm	Up
Panasonic Industrial Automation Sales LH2H-FE-DHK-DL	55 °C	-10 °C	3999day23.9hrs	999999.9 hrs	IP66	Time Counter (Hour Meter)	External Front Panel	LCD - Black Characters	Voltage	8.7 mm	0.343 in	None Required (Battery Included)	7	Screw Terminal	22.2 mm	45 mm	Up
Panasonic Industrial Automation Sales LH2H-FE-H-FV-N						Time Counter (Hour Meter)
Panasonic Industrial Automation Sales LH2H-F-DH-FV-N						Time Counter (Hour Meter)
Panasonic Industrial Automation Sales LH2HP-FEW-HMK-B-DC24V	55 °C	-10 °C	9999hrs59.9min		IP66	Time Counter (Hour Meter)	External Front Panel	LCD - Black Characters Backlight	No Voltage	8.7 mm	0.343 in		7	Screw Terminal	22.2 mm	45 mm	Down Up	999hrs59min59sec	24 VDC	Solid State
Panasonic Industrial Automation Sales LH2HPFEWHMKBDC24V
