TK3R1P04PL Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

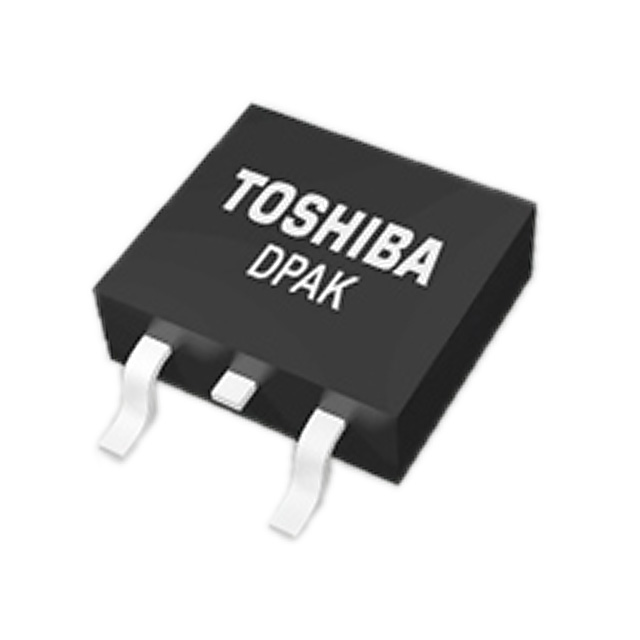

12V - 300V MOSFETS, N-CH MOSFET, 40 V, 0.0031 Ω@10V, DPAK, U-MOSⅨ-H
| Part | FET Type | Vgs (Max) | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs | Technology | Operating Temperature | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | N-Channel | 20 V | Surface Mount | 4.5 V 10 V | 3.1 mOhm | 2.4 V | 4670 pF | 40 V | DPAK | 60 nC | MOSFET (Metal Oxide) | 175 °C | 58 A | 87 W | DPAK (2 Leads + Tab) SC-63 TO-252-3 |
