M39028 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

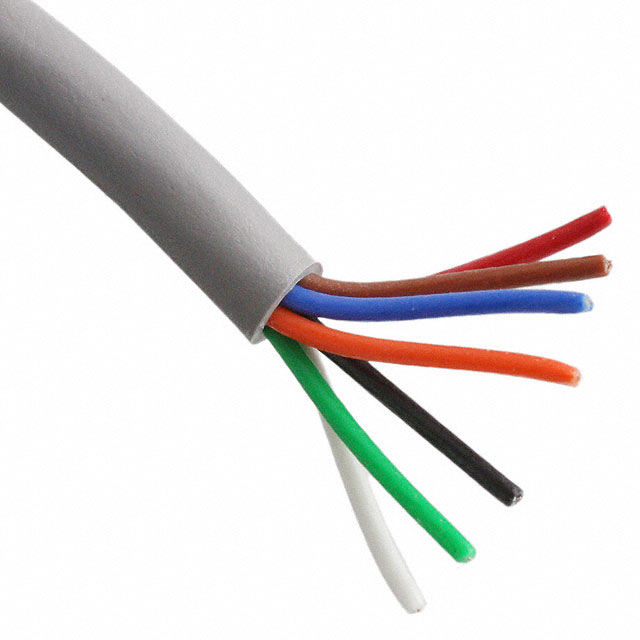

CABLE 7CON 24AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Cable Type | Wire Gauge | Jacket (Insulation) Material | Features | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket Color | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Multi-Conductor | 24 AWG | Poly-Vinyl Chloride (PVC) | Drain Wire | 100 ft | 30.5 m | 5.11 mm | 0.201 in | UL Style 2464 | Foil | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Slate | 300 VDC | 80 °C | -20 ░C | 7 | 7 | 32 AWG | ||
ALPHA WIRE | Aluminum | 100 % | Multi-Conductor | 24 AWG | Poly-Vinyl Chloride (PVC) | Drain Wire | 5.11 mm | 0.201 in | UL Style 2464 | Foil | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Slate | 300 VDC | 80 °C | -20 ░C | 7 | 7 | 32 AWG | 152.4 m | 500 ft |
