9WPA0612 Series

Catalog

FAN AXIAL 60X25MM 12VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Features	Air Flow	Air Flow	Noise	Power (Watts)	Fan Type	Ingress Protection	Width [y]	Termination	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight
Sanyo Denki America Inc. 9WPA0612P4G0011	Plastic	40000 Hrs	930 mA	10.8 VDC	13.2 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.5 m³/min	53.7 CFM	56 dB	11.16 W	Tubeaxial	IP68 - Dust Tight Waterproof	25 mm	4 Wire Leads	12 VDC	358.7 Pa	1.44 in H2O	-20 ░C	70 °C	12000 RPM	Ball	60 mm	60 mm

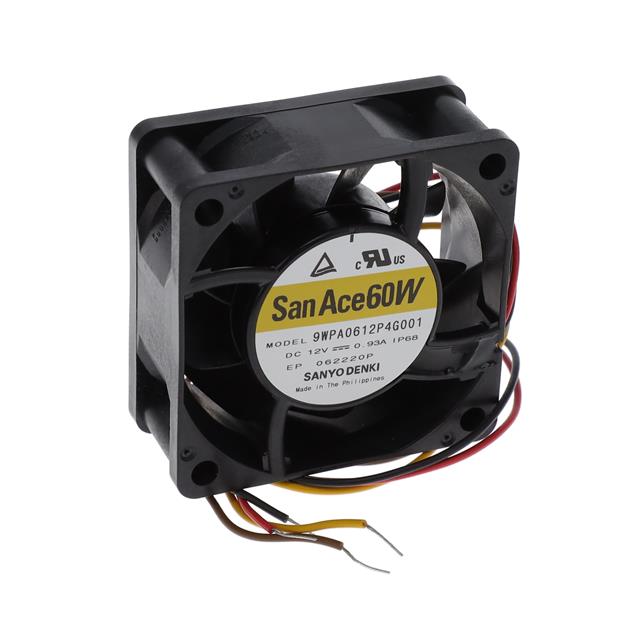

Sanyo Denki America Inc. 9WPA0612P4G001	Plastic	40000 Hrs	930 mA	10.8 VDC	13.2 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.5 m³/min	53.7 CFM	56 dB	11.16 W	Tubeaxial	IP68 - Dust Tight Waterproof	25 mm	4 Wire Leads	12 VDC	358.7 Pa	1.44 in H2O	-20 ░C	70 °C	12000 RPM	Ball	60 mm	60 mm

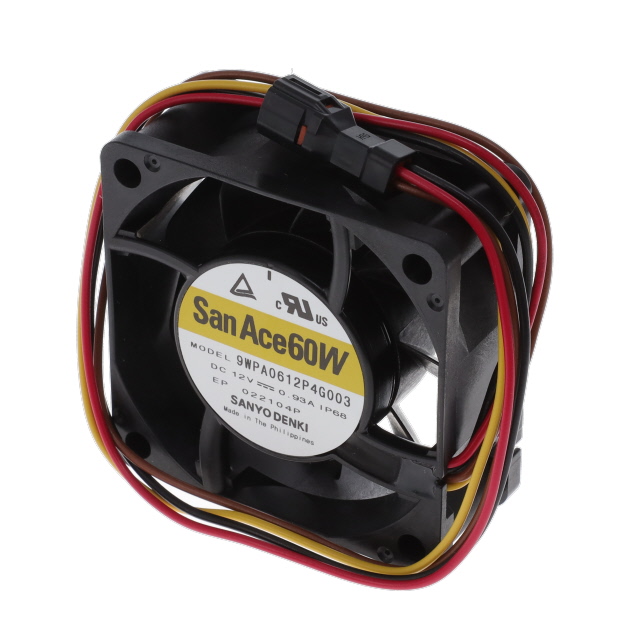

Sanyo Denki America Inc. 9WPA0612P4G003	Plastic	40000 Hrs	0.09 A	10.8 VDC	13.2 VDC	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.428 m³/min	15.3 CFM	22 dB(A)		Tubeaxial	IP68 - Dust Tight Waterproof	25 mm	4 Position Rectangular Connector	12 VDC	29.9 Pa	0.12 in H2O	-20 ░C	70 °C	3500 RPM	Ball	60 mm	60 mm	110.22 g	0.243 lb
