PM20204HB Series

Catalog

PIN HEADER, SMT, DUAL ROW, .100"

Part	Pitch - Mating	Pitch - Mating	Contact Type	Mounting Type	Shrouding	Number of Positions Loaded	Connector Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows [custom]	Fastening Type	Contact Shape	Contact Material	Insulation Material	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Rows

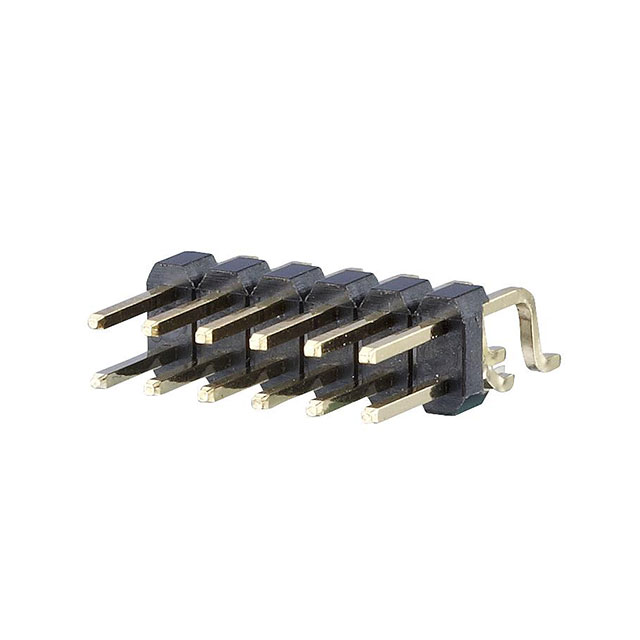

METZ CONNECT USA Inc. PM20204HBDN	0.1 "	2.54 mm	Male Pin	Right Angle Surface Mount	Unshrouded	All	Header	Black	Flash	Gold	2	Push-Pull	Square	Copper Zinc	Polyethylene	0.098 "	2.5 mm	Solder	-40 C	105 ░C	8	0.1 in	2.54 mm	3 mm	0.118 in

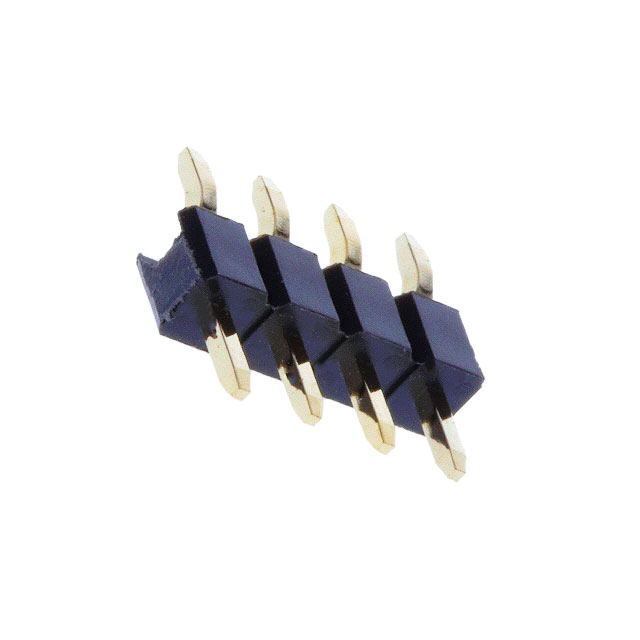

METZ CONNECT USA Inc. PM20204HBNN	0.1 "	2.54 mm	Male Pin	Right Angle Surface Mount	Unshrouded	All	Header	Black	Flash	Gold		Push-Pull	Square	Copper Zinc	Polyethylene	0.098 "	2.5 mm	Solder	-40 C	105 ░C	4			3 mm	0.118 in	1
