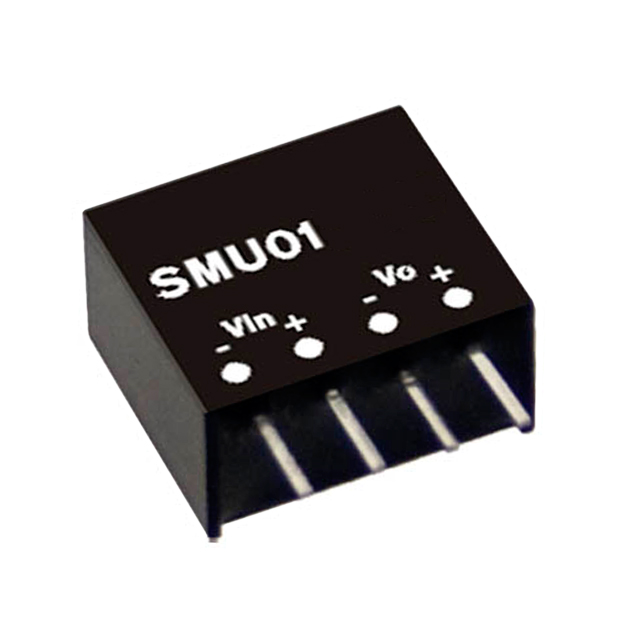

SMU01 Series

Catalog

DC DC CONVERTER 12V 1W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Current - Output (Max) [Max]	Features	Voltage - Isolation	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Applications
MEAN WELL USA Inc. SMU01N-12	90 °C	-40 °C	77 %	Through Hole	11.6 mm	0.46 in	0.24 "	0.4 "	10.1 mm	6.1 mm	21.6 V	Isolated Module	12 V	84 mA	OCP SCP	1.5 kV	4-SIP Module	1	26.4 V	ITE (Commercial)
MEAN WELL USA Inc. SMU01L-12	90 °C	-40 °C	78 %	Through Hole	11.6 mm	0.46 in	0.24 "	0.4 "	10.1 mm	6.1 mm	4.5 V	Isolated Module	12 V	84 mA	OCP SCP	1.5 kV	4-SIP Module	1	5.5 V	ITE (Commercial)
