1212 Series
Manufacturer: Belden Inc.
Beta
⌘K

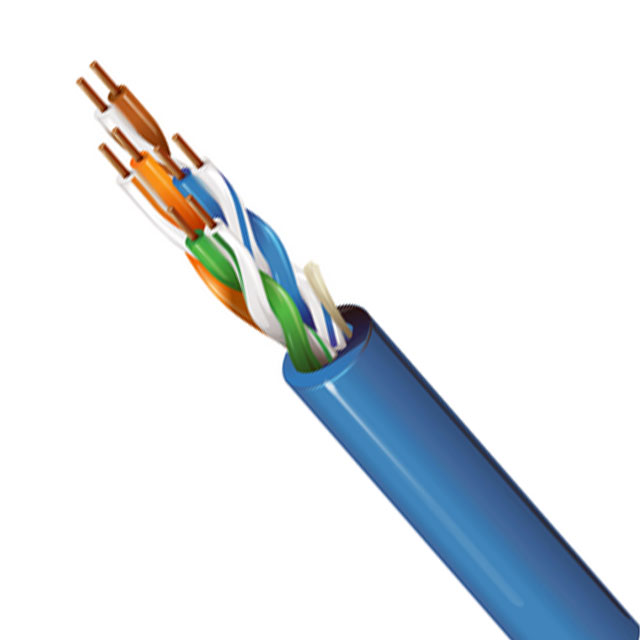

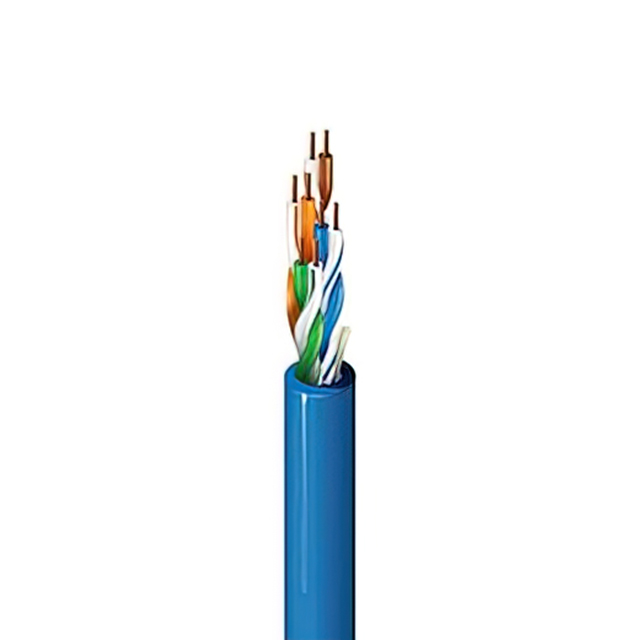

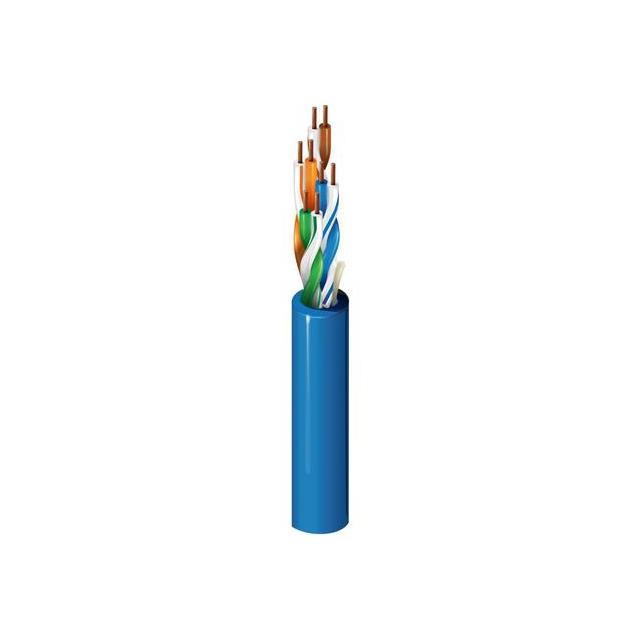

CAT5E+ 4PR U/UTP CMR BOX
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Number of Conductors | Voltage | Wire Gauge | Length | Length | Conductor Material | Features | Cable Type | Jacket Color | Usage | Conductor Insulation | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Gray | Network | Polyolefin | PO |
 Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Blue | Network | Polyolefin | PO |
 Belden Inc. | |||||||||||||||||||
Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Green | Network | Polyolefin | PO |
 Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Black | Network | Polyolefin | PO |
 Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Orange | Network | Polyolefin | PO |
Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 304.8 m | 1000 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Yellow | Network | Polyolefin | PO |
Belden Inc. | -25 °C | 75 ░C | Poly-Vinyl Chloride (PVC) Riser | Solid | 0.206 in | 5.23 mm | UL Style CMR | 8 | 300 VDC | 24 AWG | 762 m | 2500 ft | Copper Bare | Rip Cord | Multi-Pair Cat5e | Blue | Network | Polyolefin | PO |
