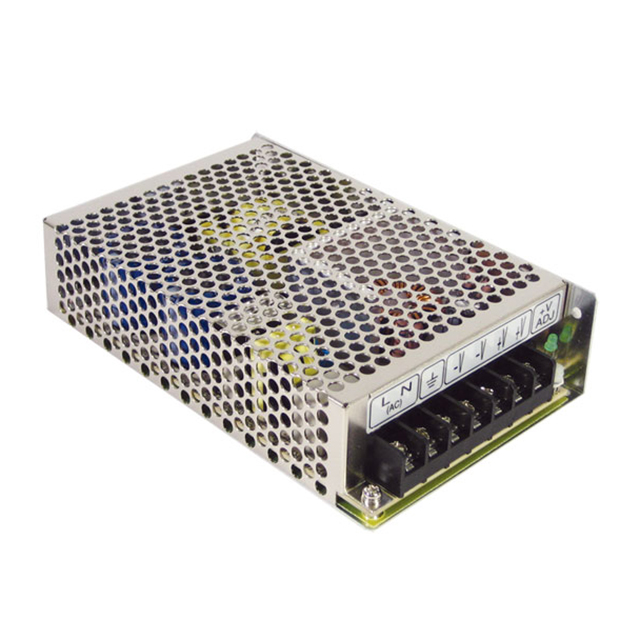

RQ-85 Series

Catalog

AC/DC CNVRTR 5V 15V -5V -15V 83W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Voltage - Isolation	Voltage - Output 3	Power (Watts)	Current - Output 4	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 1	Current - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Efficiency	Current - Output 3	Current - Output 2	Number of Outputs	Voltage - Output 2	Features	Voltage - Output 4
MEAN WELL USA Inc. RQ-85C	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	CB CE cURus TUV	3000 V	-5 V	83 W	500 mA	70 °C	-25 °C	Enclosed	5 V	7 A	Chassis Mount	88 VAC 125 VDC	264 VAC 373 VDC	ITE (Commercial)	77 %	500 mA	2.5 A	4	15 V	Adjustable Output Universal Input	-15 V
MEAN WELL USA Inc. RQ-85B	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	CB CE cURus TUV	3000 V	-5 V	81 W	500 mA	70 °C	-25 °C	Enclosed	5 V	7 A	Chassis Mount	88 VAC 125 VDC	264 VAC 373 VDC	ITE (Commercial)	76 %	500 mA	3.1 A	4	12 V	Adjustable Output Universal Input	-12 V
MEAN WELL USA Inc. RQ-85D	1.5 in	6.26 in	159 mm	3.82 in	38 mm	97 mm	CB CE cURus TUV	3000 V	24 V	84 W	500 mA	70 °C	-25 °C	Enclosed	5 V	6 A	Chassis Mount	88 VAC 125 VDC	264 VAC 373 VDC	ITE (Commercial)	78 %		2 A	4	12 V	Adjustable Output Universal Input	-12 V
