0265-0 Series

Catalog

CONN PC PIN CIRC .072DIA TINLEAD

Part	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Terminal Style	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Type	Contact Finish	Mounting Type	Insulation	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Above Flange [x]	Length - Above Flange [x]

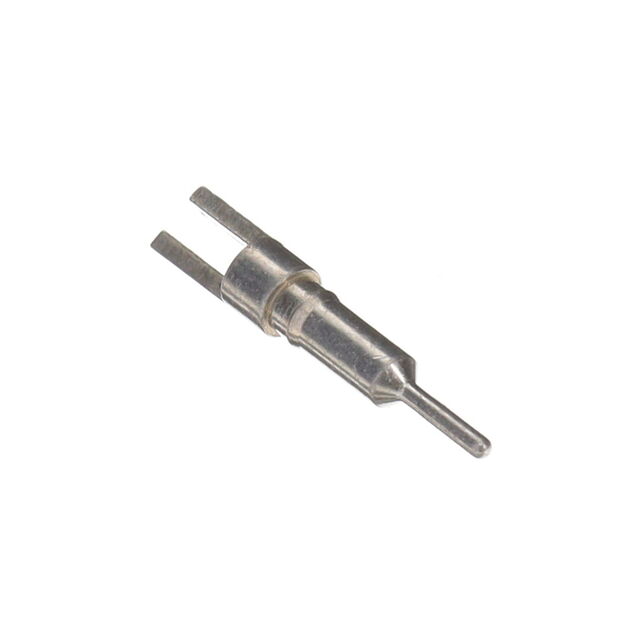

Mill-Max Manufacturing Corp. 0265-0-01-01-00-00-03-0	200 Áin	5.08 Ám	0.02 in	0.51 mm	Single End Slotted	1.83 mm	0.072 in	0.072 "	1.83 mm	PC Pin	Tin-Lead	Through Hole	Non-Insulated	6.6 mm	0.26 "	Brass Alloy	0.417 in	10.59 mm	Press-Fit	1.45 mm	0.057 in	0.157 in	3.99 mm
Mill-Max Manufacturing Corp. 0265-0-01-34-00-00-03-0	50 µin	1.27 µm	0.02 in	0.51 mm	Single End Slotted	1.83 mm	0.072 in	0.072 "	1.83 mm	PC Pin	Gold	Through Hole	Non-Insulated	6.6 mm	0.26 "	Brass Alloy	0.417 in	10.59 mm	Press-Fit	1.45 mm	0.057 in	0.157 in	3.99 mm

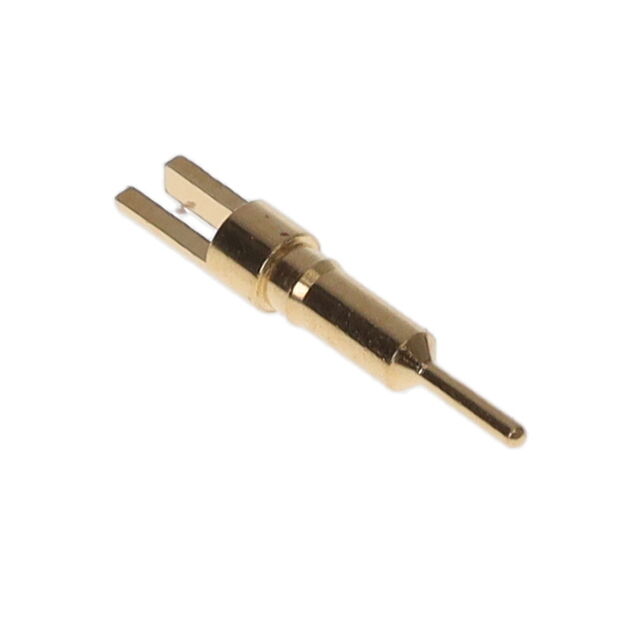

Mill-Max Manufacturing Corp. 0265-0-01-15-00-00-03-0	10 Áin	0.25 Ám	0.02 in	0.51 mm	Single End Slotted	1.83 mm	0.072 in	0.072 "	1.83 mm	PC Pin	Gold	Through Hole	Non-Insulated	6.6 mm	0.26 "	Brass Alloy	0.417 in	10.59 mm	Press-Fit	1.45 mm	0.057 in	0.157 in	3.99 mm
