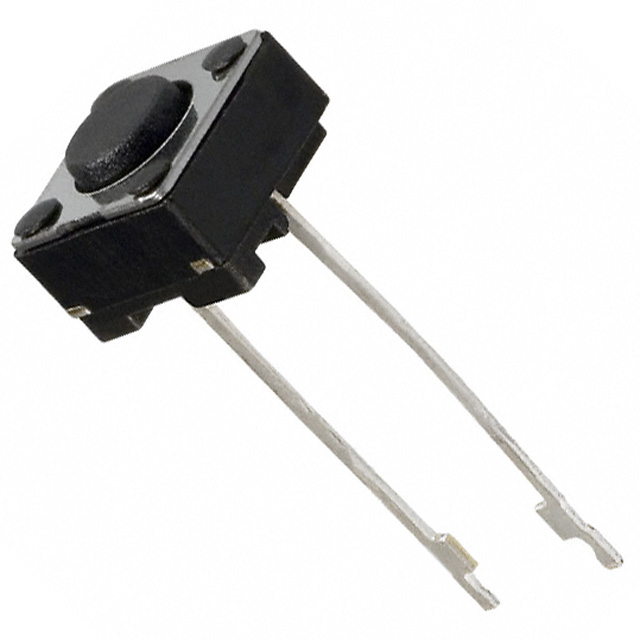

TL59N Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Actuator Material | Switch Travel | Contact Rating @ Voltage | Actuator Type | Operating Force | Actuator Height off PCB, Vertical [z] | Illumination | Outline [x] | Outline [y] | Switch Function | Mounting Type | Circuit | Actuator Orientation | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | Polybutylene Terephthalate (PBT) | 0.25 mm | 0.05 A 12 VDC | Standard | 160 gf | 4.3 mm | Non-Illuminated | 6.2 mm | 6.2 mm | Off-Mom | Through Hole | SPST-NO | Top Actuated | PC Pin | -20 ░C | 70 °C |
