LMZ13610 Series
Manufacturer: Texas Instruments
Beta
⌘K

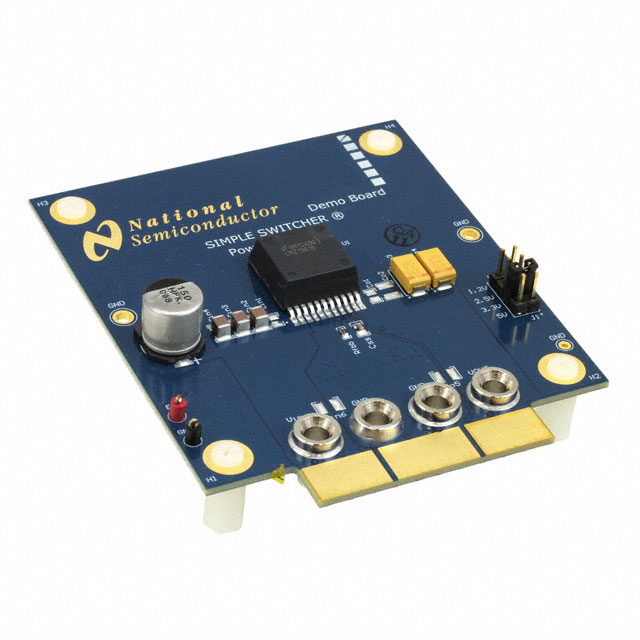

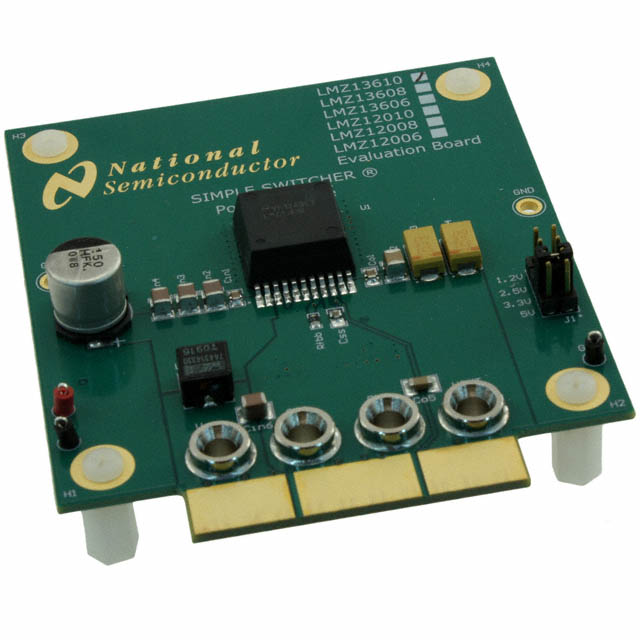

BOARD EVAL LMZ13610
| Part | Main Purpose | Board Type | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Regulator Topology | Utilized IC / Part | Outputs and Type | Outputs and Type | Supplied Contents | Package / Case | Voltage - Input (Min) [Min] | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Applications | Features | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DC/DC Step Down | Fully Populated | 10 A | 36 V | 6 V | 1.2 V 2.5 V 3.3 V 5 V | Buck | LMZ13610 | Non-Isolated | 1 | Board(s) | ||||||||||||||||||||
 Texas Instruments | TO-PMOD-11 Power Module | 6 V | 1 | 15 mm | 0.23 " | 15 mm | 0.59 in | 5.9 mm | 0.59 in | 36 V | 93 % | 125 °C | -40 °C | 10 A | 0.8 V | 6 V | ITE (Commercial) | OCP OTP OVP SCP UVLO | Surface Mount | Non-Isolated PoL Module | |||||||||||
 Texas Instruments | DC/DC Step Down | Fully Populated | 10 A | 36 V | 6 V | 1.2 V 2.5 V 3.3 V 5 V | Buck | LMZ13610 | Non-Isolated | 1 | Board(s) | ||||||||||||||||||||
 Texas Instruments | TO-PMOD-11 Power Module | 6 V | 1 | 15 mm | 0.23 " | 15 mm | 0.59 in | 5.9 mm | 0.59 in | 36 V | 93 % | 125 °C | -40 °C | 10 A | 0.8 V | 6 V | ITE (Commercial) | Surface Mount | Non-Isolated PoL Module |
