DB02D Series

Catalog

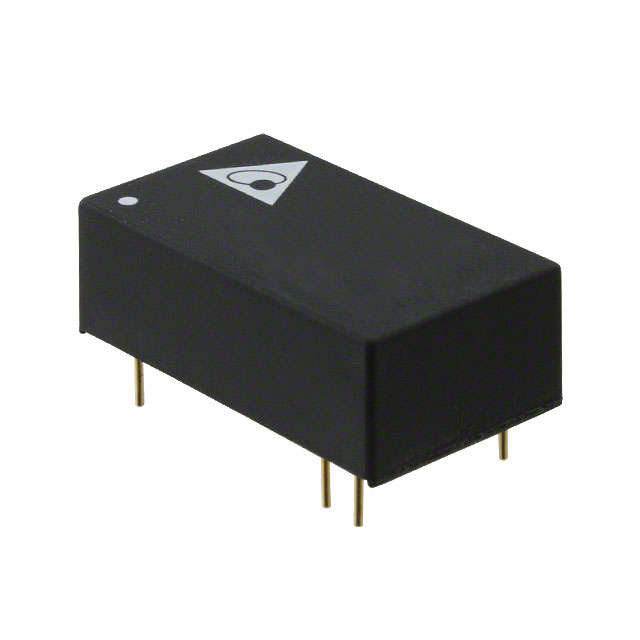

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC/DC CONVERTER, +/-5VOUT, 2W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 2	Voltage - Isolation	Package / Case	Voltage - Output 1	Type	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Mounting Type	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Applications	Current - Output (Max)	Current - Output (Max)
Delta Electronics DB02D2405A	80 °C	-40 C	SCP UVLO	-5 V	1.5 kV	16-DIP Module 6 Leads	5 V	Isolated Module	36 V	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	2 W	Through Hole	2	74 %	18 V	Medical
Delta Electronics DB02D4805A	80 °C	-40 C	SCP UVLO	-5 V	1.5 kV	16-DIP Module 6 Leads	5 V	Isolated Module	75 V	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	2 W	Through Hole	2	71 %	36 V	Medical
Delta Electronics DB02D2412A	80 °C	-40 C	SCP UVLO	-12 V	1.5 kV	16-DIP Module 6 Leads	12 V	Isolated Module	36 V	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	2 W	Through Hole	2	78 %	18 V	Medical	83 mA	83 mA
Delta Electronics DB02D1215A	80 °C	-40 C	SCP UVLO	-15 V	1.5 kV	16-DIP Module 6 Leads	15 V	Isolated Module	18 V	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	2 W	Through Hole	2	78 %	9 V	Medical	67 mA	67 mA
Delta Electronics DB02D1212A	80 °C	-40 C	SCP UVLO	-12 V	1.5 kV	16-DIP Module 6 Leads	12 V	Isolated Module	18 V	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	2 W	Through Hole	2	78 %	9 V	Medical	83 mA	83 mA
