OSTYC03 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

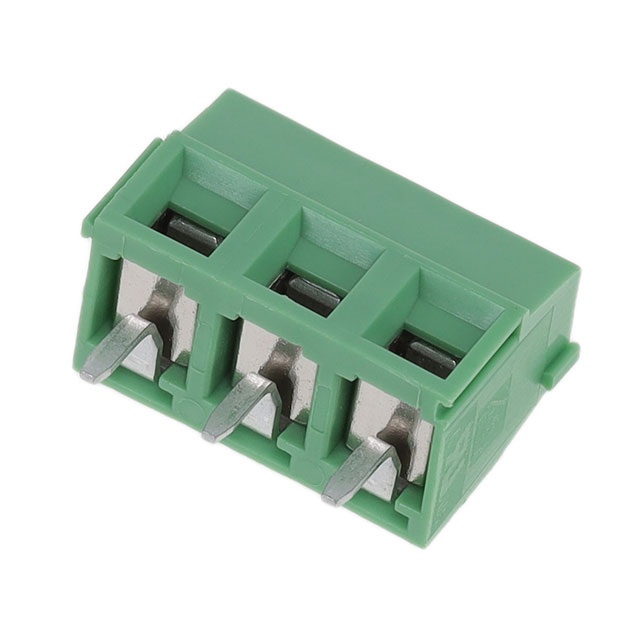

TERM BLK 3P SIDE ENT 5.08MM PCB
| Part | Housing Material | Contact Material - Plating | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Torque - Screw | Torque - Screw | Screw Material - Plating | Pitch | Pitch | Positions Per Level | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Number of Levels | Features | Current | Color | Wire Termination | Mounting Type | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Thermoplastic | Brass | Brass | -30 ░C | 105 ░C | M2.5 | 3.5 Lb-In | 0.4 Nm | Steel - Zinc Plated | 5.08 mm | 0.2 in | 3 | 26 AWG | 16 AWG | 300 VDC | 1 | Interlocking (Side) | 10 A | Green | Screw - Rising Cage Clamp | Through Hole | Horizontal with Board |
