745-042 Series

Manufacturer: EDAC Inc.

Catalog

745 SERIES ULTRA-MATE CARD EDGE

Part	Material - Insulation	Termination Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Card Type	Number of Positions	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Rows [custom]	Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions/Bay/Row	Number of Rows

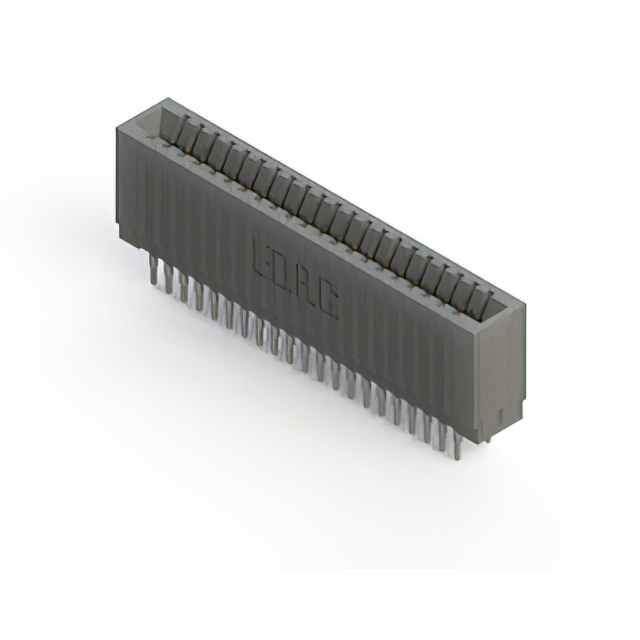

EDAC Inc. 745-042-545-201	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit	-40 C	105 ░C
EDAC Inc. 745-042-522-101	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	Single	Cantilever	Non Specified - Single Edge	42	Copper Alloy	Gold		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm		Black	Press-Fit	-40 C	105 ░C	1	42	1
EDAC Inc. 745-042-525-106	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	Single	Cantilever	Non Specified - Single Edge	42	Copper Alloy	Gold		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm		Black	Press-Fit	-40 C	105 ░C	1	42	1

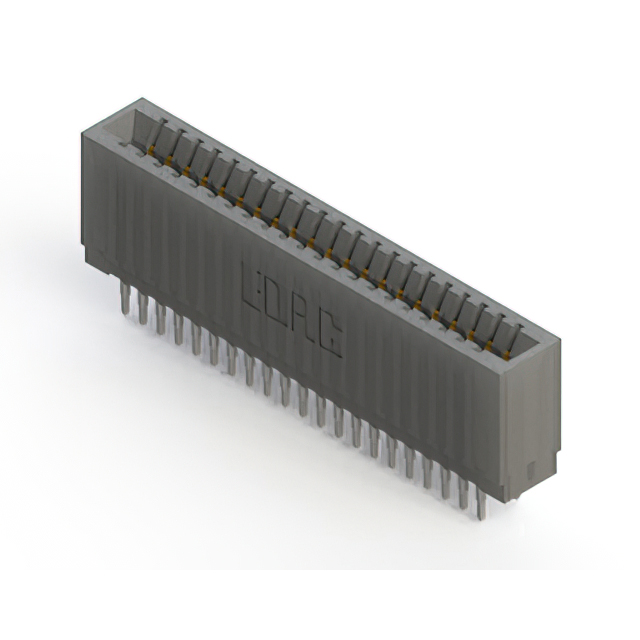

EDAC Inc. 745-042-560-201	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever Make Before Break	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit	-40 C	105 ░C
EDAC Inc. 745-042-541-101	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	Single	Cantilever	Non Specified - Single Edge	42	Copper Alloy	Gold		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm		Black	Press-Fit Wire Wrap	-40 C	105 ░C	1	42	1

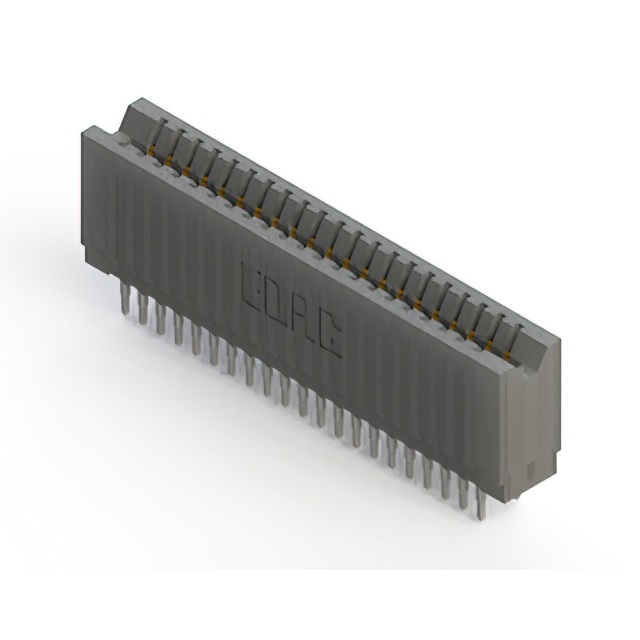

EDAC Inc. 745-042-560-206	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever Make Before Break	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit	-40 C	105 ░C
EDAC Inc. 745-042-540-206	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit Wire Wrap	-40 C	105 ░C

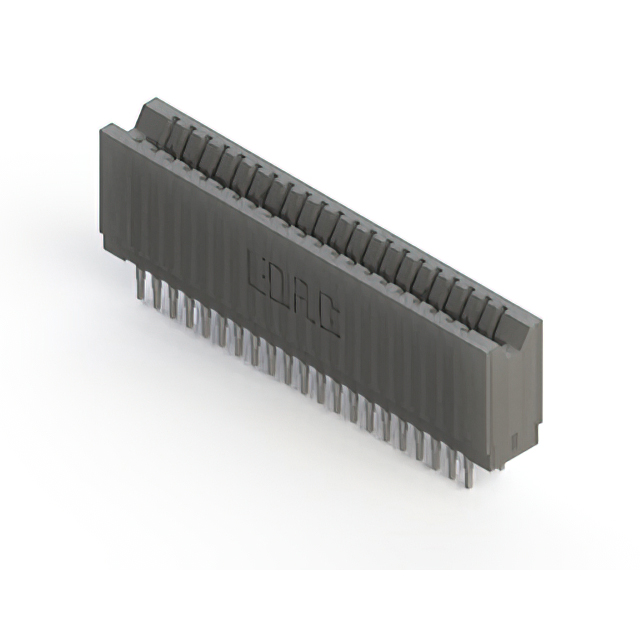

EDAC Inc. 745-042-522-206	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit	-40 C	105 ░C
EDAC Inc. 745-042-541-206	Polyester Thermoplastic	2	Through Hole	30 Áin	0.76 Ám	Dual	Cantilever	Non Specified - Dual Edge	42	Copper Alloy	Gold	21	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	2	Black	Press-Fit Wire Wrap	-40 C	105 ░C
EDAC Inc. 745-042-522-106	Polyester Thermoplastic		Through Hole	30 Áin	0.76 Ám	Single	Cantilever	Non Specified - Single Edge	42	Copper Alloy	Gold		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm		Black	Press-Fit	-40 C	105 ░C	1	42	1
