MSS4 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE 4P3T 300MA 125V

Part	Mechanical Life	Actuator Material	Operating Force	Electrical Life	Switch Travel	Mounting Type	Actuator Type	Switch Function	Features	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - AC	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Contact Timing	Contact Material	Voltage Rating - DC
TE Connectivity AMP Connectors MSS4300	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Through Hole	Standard	On-On-On	Epoxy Sealed Terminals	300 mA	PC Pin	4P3T	125 V	Silver	85 °C	-20 ░C	5.5 mm	Shorting (MBB)	Copper Alloy
TE Connectivity AMP Connectors MSS4200	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Through Hole	Standard	On-On	Epoxy Sealed Terminals	300 mA	PC Pin	4PDT	125 V	Silver	85 °C	-20 ░C	8 mm	Shorting (MBB)	Copper Alloy
TE Connectivity AMP Connectors MSS4350RG	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Right Angle Through Hole	Standard	On-On-On	Epoxy Sealed Terminals	0.4 VA	PC Pin	4P3T	20 V	Gold	85 °C	-20 ░C	14 mm	Shorting (MBB)	Copper Alloy	20 V

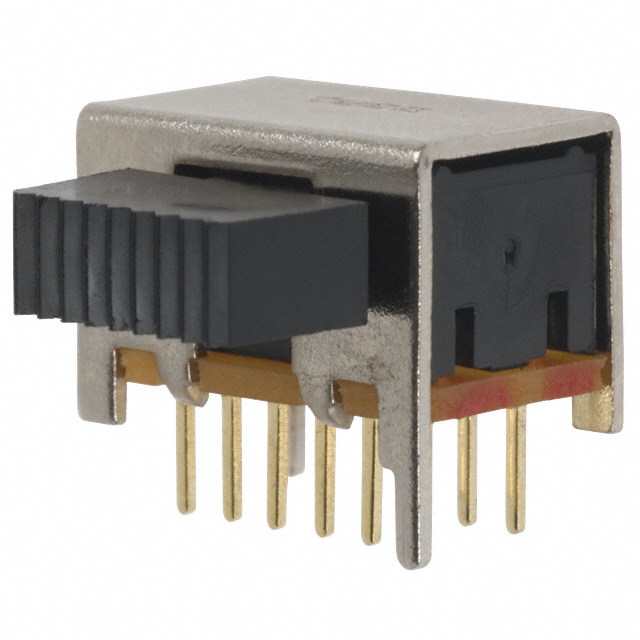

TE Connectivity AMP Connectors MSS4200RG	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Right Angle Through Hole	Standard	On-On	Epoxy Sealed Terminals	0.4 VA	PC Pin	4PDT	20 V	Gold	85 °C	-20 ░C	7 mm	Shorting (MBB)	Copper Alloy	20 V
TE Connectivity AMP Connectors MSS4250	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Through Hole	Standard	On-On	Epoxy Sealed Terminals	300 mA	PC Pin	4PDT	125 V	Silver	85 °C	-20 ░C	12 mm	Shorting (MBB)	Copper Alloy
TE Connectivity AMP Connectors MSS4335	15000 Cycles	Polyoxymethylene (Acetal) (POM)	600 gf	15000 Cycles	2 mm	Through Hole	Standard	On-On-On	Epoxy Sealed Terminals	300 mA	PC Pin	4P3T	125 V	Silver	85 °C	-20 ░C	9 mm	Shorting (MBB)	Copper Alloy
