ES2DAF Series

Surface Mount Superfast Rectifier

Catalog

Surface Mount Superfast Rectifier

Part	Reverse Recovery Time (trr)	Speed	Package / Case	Technology	Mounting Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Supplier Device Package	Grade	Qualification	Capacitance @ Vr, F

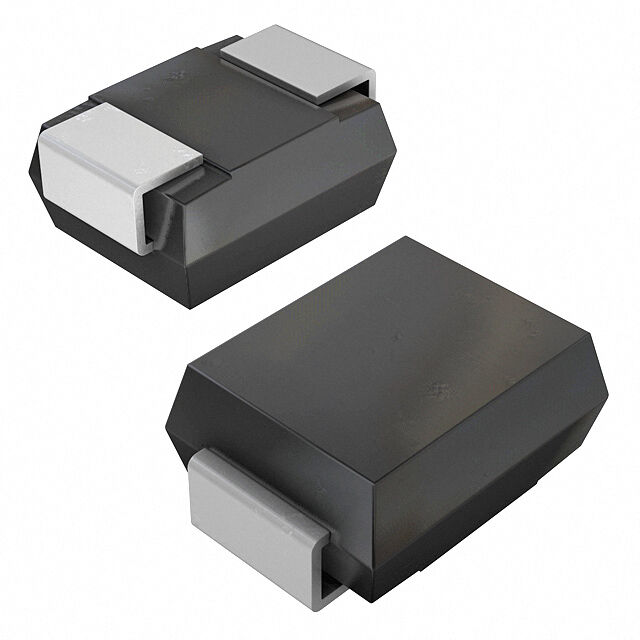

ON Semiconductor ES2D	20 ns	200 mA 500 ns	DO-214AA SMB	Standard	Surface Mount	2 A	900 mV	-50 °C	150 °C	200 V	5 µA	SMB	DO-214AA
ON Semiconductor ES2DAF	35 ns	200 mA 500 ns	DO-214AD SMAF	Standard	Surface Mount	2 A	950 mV	-55 °C	150 °C	200 V	1 µA	SMAF	DO-214AD	Automotive	AEC-Q101	30 pF

Surface Mount Superfast Rectifier

• Fast Switching Speed – Maximum Trr35 ns

• Ultra Thin Profile - Maximum Height of 1.0 mm

• Glass Passivated Junction

• UL Flammability 94V-0 Classification

• MSL level 1

• RoHS Compliant / Green Mold Compound
