R22343 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

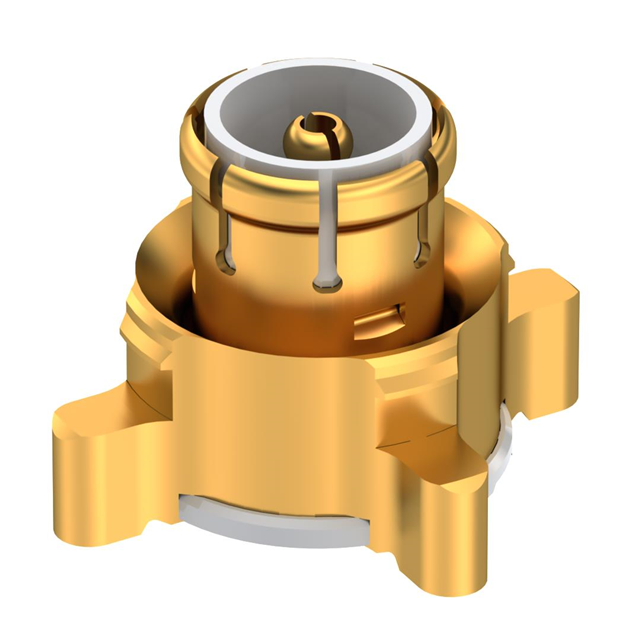

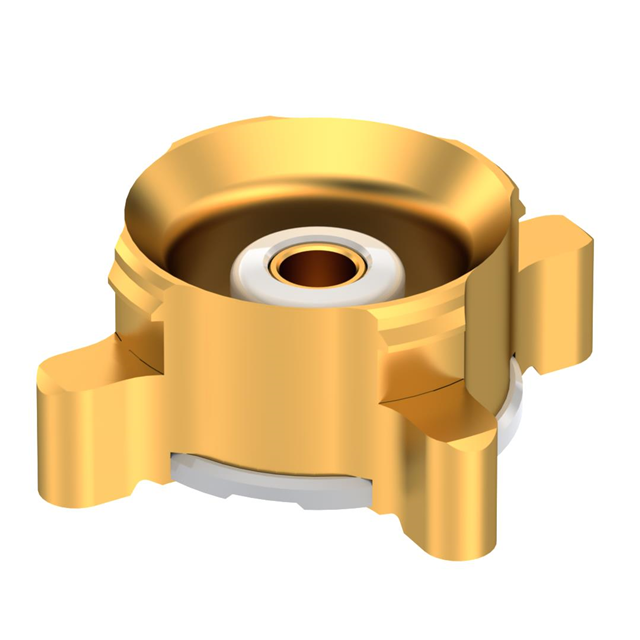

MMBX / SMT PLUG RECEPTACLE - REE
| Part | Center Contact Material | Voltage Rating | Center Contact Plating | Body Material | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Frequency - Max [Max] | Contact Termination | Mounting Type | Connector Style | Impedance | Connector Type | Housing Color | Shield Termination | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Beryllium Copper Brass | 330 VDC | Gold | Beryllium Copper Brass | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 500 | 12.4 GHz | Solder | Surface Mount | MMBX | 50 Ohms | Plug Male Pin | Gold | Solder | Snap-On | 1 |
 Radiall USA, Inc. | Beryllium Copper Brass | 330 VDC | Gold | Brass Bronze | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 12.4 GHz | Solder | Surface Mount | MMBX | 50 Ohms | Plug Male Pin | Gold | Solder | Snap-On | 1 | |
 Radiall USA, Inc. | Beryllium Copper Brass | 330 VDC | Gold | Beryllium Copper Brass | Gold | 155 C | -55 C | Liquid Crystal Polymer Polytetrafluoroethylene | 12.4 GHz | Solder | Through Hole | MMBX | 50 Ohms | Plug Male Pin | Gold | Solder | Snap-On | 1 | |
 Radiall USA, Inc. | Beryllium Copper Brass | 330 VDC | Gold | Brass Bronze | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 12.4 GHz | Solder | Surface Mount | MMBX | 50 Ohms | Plug Male Pin | Gold | Solder | Snap-On | 1 | |
Radiall USA, Inc. | Beryllium Copper Brass | 330 VDC | Gold | Beryllium Copper Brass | Gold | 155 C | -55 C | Liquid Crystal Polymer Polytetrafluoroethylene | 12.4 GHz | Solder | Through Hole | MMBX | 50 Ohms | Plug Male Pin | Gold | Solder | Snap-On | 1 |
