UF3SC065007 Series
Manufacturer: Qorvo
Beta
⌘K

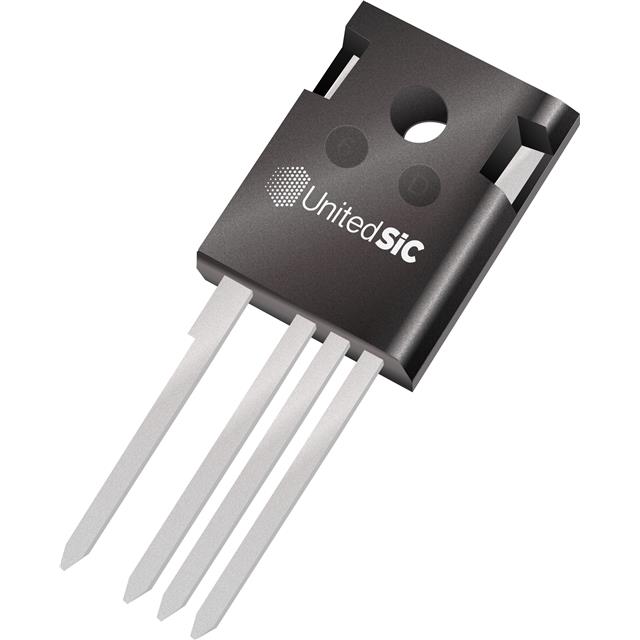

MOSFET N-CH 650V 120A TO247-4
| Part | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Technology | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Vgs (Max) | FET Type | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qorvo | 214 nC | Through Hole | 175 °C | -55 °C | TO-247-4 | 12 V | 650 V | 120 A | SiCFET (Cascode SiCJFET) | 8360 pF | TO-247-4 | 20 V | N-Channel | 6 V | 9 mOhm | 789 W |
