IRM-03 Series

Catalog

AC/DC CONVERTER 9V 3W

Part	Load Regulation	Line Regulation	Mounting Type	Efficiency	Type	Current - Output (Max) [Max]	Applications	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Package / Case	Number of Outputs	Voltage - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Load Regulation

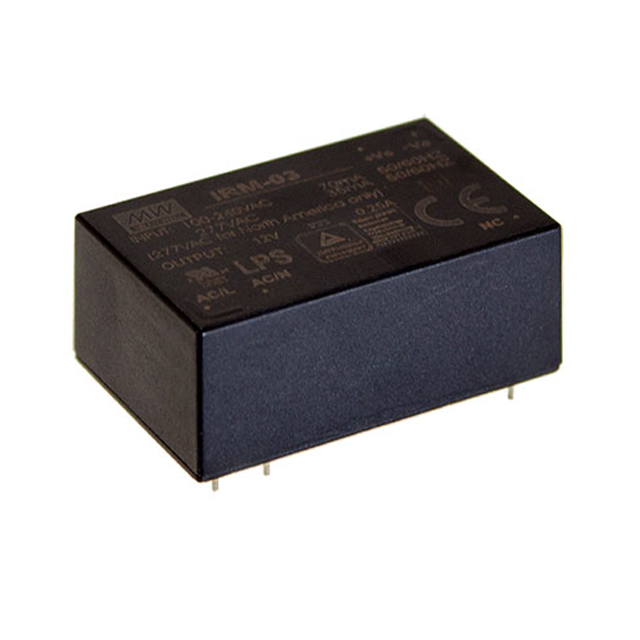

MEAN WELL USA Inc. IRM-03-9	0.5 %	0.5 %	Through Hole	77 %	Enclosed	333 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	9 V	CB CE cURus TUV	85 °C	-30 °C

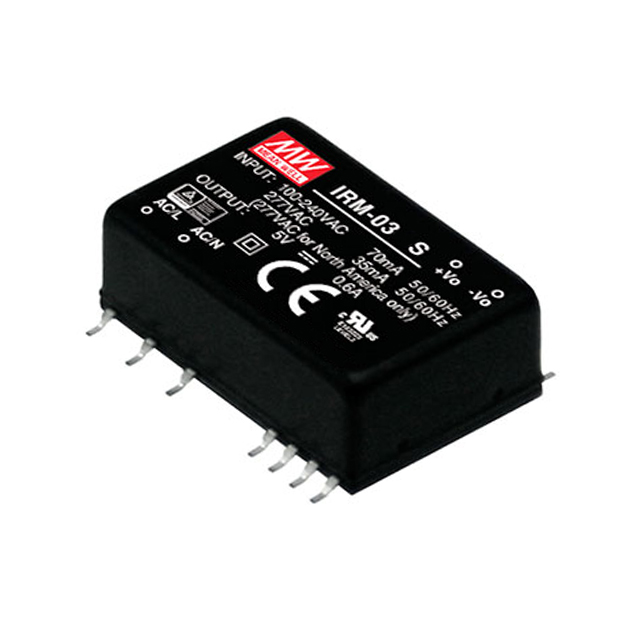

MEAN WELL USA Inc. IRM-03-5S	0.5 %	0.5 %	Surface Mount	72 %	Enclosed	600 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.63 in	37 mm	0.94 in	1.46 in	16 mm	Universal Input	26-SMD Module 14 Leads	1	5 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-3.3		0.5 %	Through Hole	68 %	Enclosed	900 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	3.3 V	CB CE cURus TUV	85 °C	-30 °C	±1%
MEAN WELL USA Inc. IRM-03-12S	0.5 %	0.5 %	Surface Mount	78 %	Enclosed	250 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.63 in	37 mm	0.94 in	1.46 in	16 mm	Universal Input	26-SMD Module 14 Leads	1	12 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-24S	0.5 %	0.5 %	Surface Mount	80 %	Enclosed	125 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.63 in	37 mm	0.94 in	1.46 in	16 mm	Universal Input	26-SMD Module 14 Leads	1	24 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-3.3S		0.5 %	Surface Mount	68 %	Enclosed	900 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.63 in	37 mm	0.94 in	1.46 in	16 mm	Universal Input	26-SMD Module 14 Leads	1	3.3 V	CB CE cURus TUV	85 °C	-30 °C	±1%
MEAN WELL USA Inc. IRM-03-12	0.5 %	0.5 %	Through Hole	78 %	Enclosed	250 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	12 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-5	0.5 %	0.5 %	Through Hole	72 %	Enclosed	600 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	5 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-15	0.5 %	0.5 %	Through Hole	78 %	Enclosed	200 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	15 V	CB CE cURus TUV	85 °C	-30 °C
MEAN WELL USA Inc. IRM-03-24	0.5 %	0.5 %	Through Hole	80 %	Enclosed	125 mA	ITE (Commercial)	3 W	305 VAC 430 VDC	85 VAC 120 VDC	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Universal Input	5-DIP Module	1	24 V	CB CE cURus TUV	85 °C	-30 °C
