AM3354 Series

Catalog

SITARA PROCESSOR: ARM CORTEX-A8, 3D GRAPHICS, CAN

Part	Additional Interfaces	Number of Cores/Bus Width	USB	Speed	Security Features	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - I/O	Supplier Device Package	Package / Case	Ethernet	Ethernet	Mounting Type	Display & Interface Controllers	RAM Controllers	Co-Processors/DSP	Operating Temperature [custom]

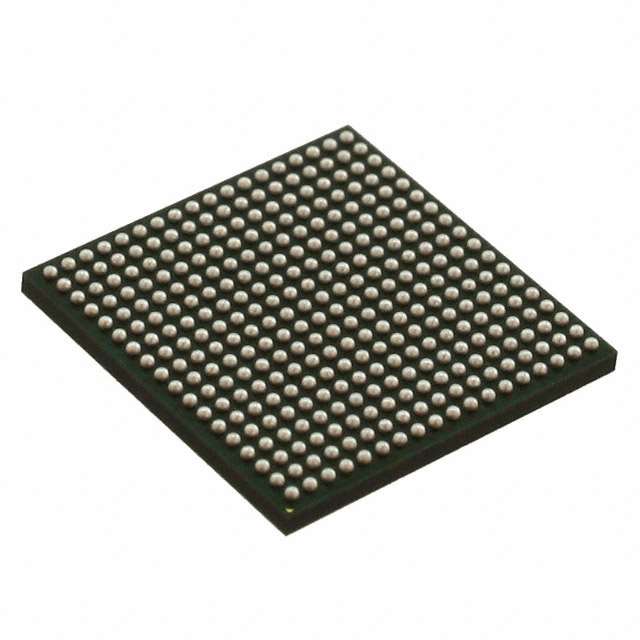

Texas Instruments AM3354BZCZ80	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	800 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	0 °C	90 °C	1.8 V 3.3 V	324-NFBGA (15x15)	324-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD

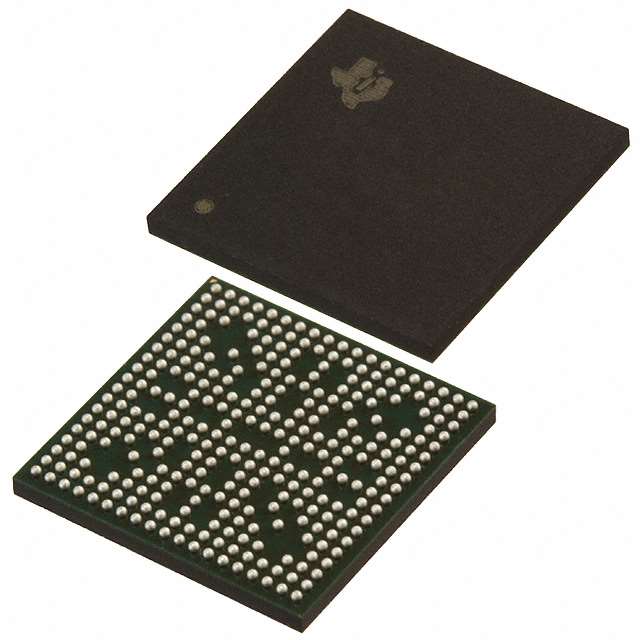

Texas Instruments AM3354BZCED60	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	600 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	-40 °C	90 °C	1.8 V 3.3 V	298-NFBGA (13x13)	298-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354BZCZA100	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	1 GHz	Cryptography Random Number Generator	ARM® Cortex®-A8			1.8 V 3.3 V	324-NFBGA (15x15)	324-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD	-40 °C 105 °C
Texas Instruments AM3354BZCE30	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	300 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	0 °C	90 °C	1.8 V 3.3 V	298-NFBGA (13x13)	298-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354ZCZ60	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	600 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	0 °C	90 °C	1.8 V 3.3 V	324-NFBGA (15x15)	324-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354BZCZ100	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	1 GHz	Cryptography Random Number Generator	ARM® Cortex®-A8	0 °C	90 °C	1.8 V 3.3 V	324-NFBGA (15x15)	324-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354BZCZD80	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	800 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	-40 °C	90 °C	1.8 V 3.3 V	324-NFBGA (15x15)	324-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354WITSD	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)		Cryptography Random Number Generator	ARM® Cortex®-A8	-40 °C	90 °C	1.8 V 3.3 V			10 Mbps 100 Mbps 1000 Mbps	2		LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354BZCED30	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	300 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8	-40 °C	90 °C	1.8 V 3.3 V	298-NFBGA (13x13)	298-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD
Texas Instruments AM3354BZCEA60	CAN I2C McASP McSPI MMC/SD/SDIO UART	1 Core 32 Bit	USB 2.0 + PHY (2)	600 MHz	Cryptography Random Number Generator	ARM® Cortex®-A8			1.8 V 3.3 V	298-NFBGA (13x13)	298-LFBGA	10 Mbps 100 Mbps 1000 Mbps	2	Surface Mount	LCD Touchscreen	DDR2 DDR3 DDR3L LPDDR	Multimedia NEON™ SIMD	-40 °C 105 °C
