391-098 Series

Manufacturer: EDAC Inc.

Catalog

391 SERIES (.100" (2.54MM) CONTA

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Mounting Type	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features	Contact Finish	Number of Rows [custom]	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Card Type	Pitch	Pitch
EDAC Inc. 391-098-556-204	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Card Extender	Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm

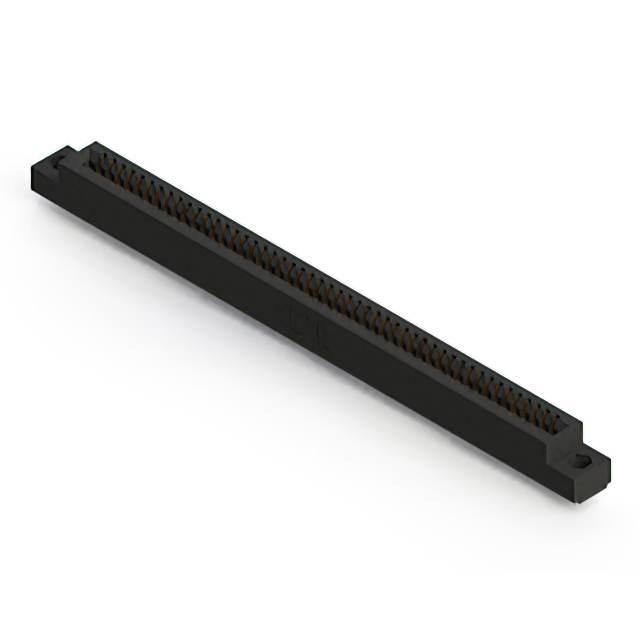

EDAC Inc. 391-098-524-204	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm		Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm

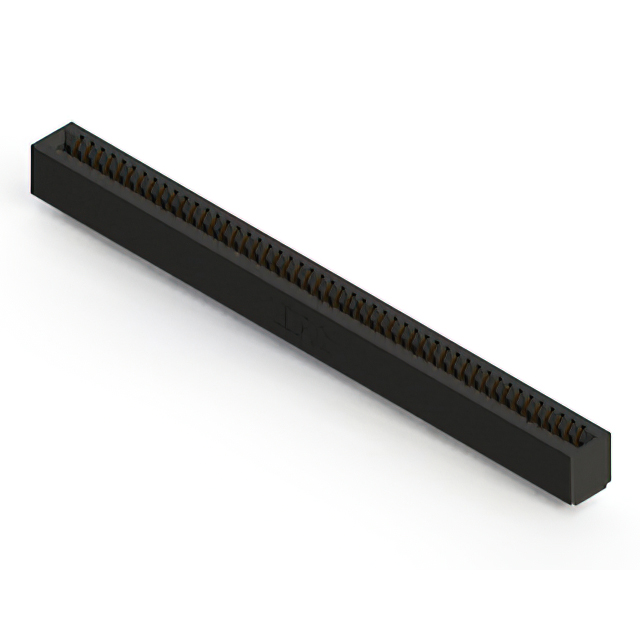

EDAC Inc. 391-098-524-201	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder					Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-556-207	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Flush Mount M3 Threaded Insert Top Opening			Card Extender	Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-556-201	Polyester Thermoplastic	2	Semi Bellows	Board Edge Straddle Mount	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder				Card Extender	Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-524-208	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	4-40 Flush Mount Threaded Insert Top Opening				Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-560-204	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Card Extender	Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm

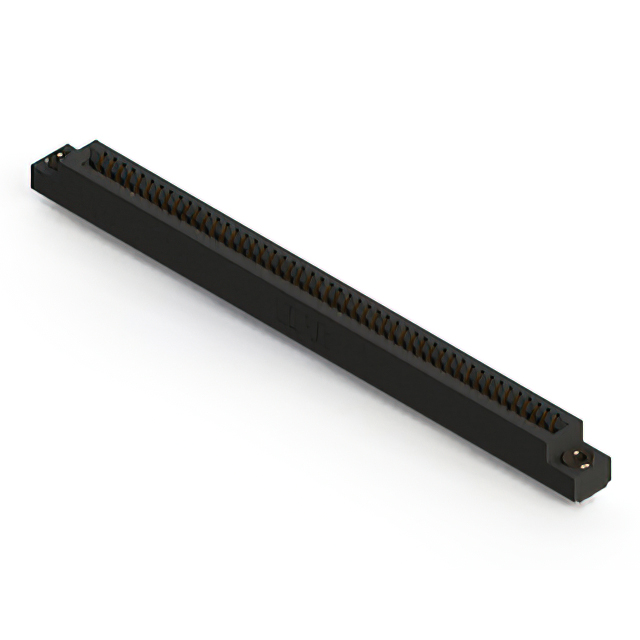

EDAC Inc. 391-098-520-203	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm		Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-560-207	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder	Flush Mount M3 Threaded Insert Top Opening			Card Extender	Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 391-098-520-201	Polyester Thermoplastic	2	Semi Bellows	Through Hole	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Solder					Gold	2	Female	0.25 Ám	10 Áin	Copper Alloy	98	-40 C	105 ░C	Dual	Non Specified - Dual Edge	0.1 "	2.54 mm
