T350 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG MALE 8P SILV SLDR CUP

Part	Shell Size - Insert	Primary Material	Shielding	Orientation	Fastening Type	Voltage Rating	Mounting Type	Shell Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Shell Material	Color	Ingress Protection	Mounting Feature	Material Flammability Rating	Contact Size	Type	Insert Material	Contact Shape	Contact Type	Note	Housing Color	Termination

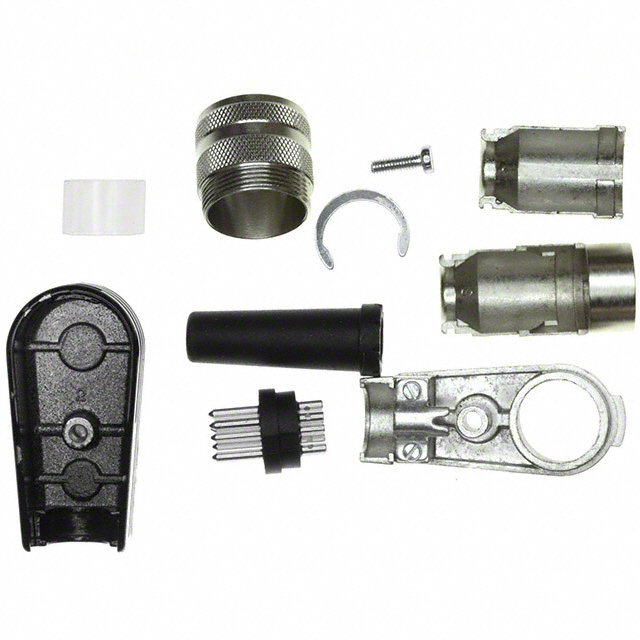

Amphenol Tuchel Industrial T3504005U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Free Hanging (In-Line) Right Angle	Nickel	8	-40 C	100 °C	Strain Relief	Silver	7 A	Plug Male Pins	Die Cast	Silver	IP40

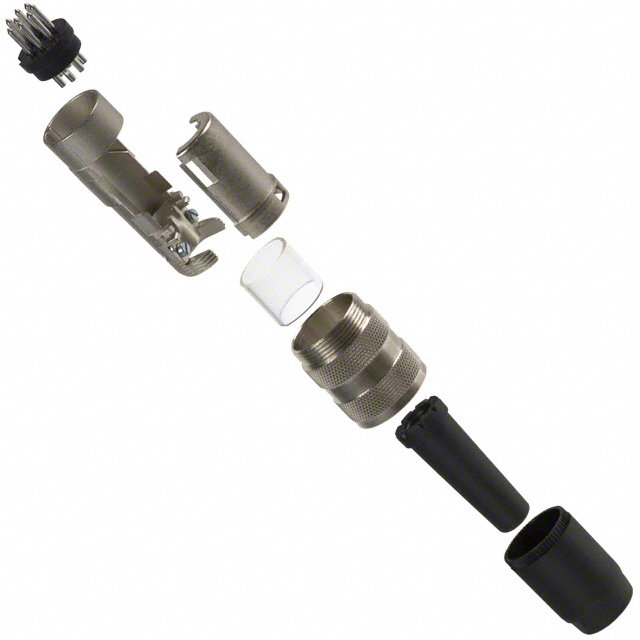

Amphenol Tuchel Industrial T3504001U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Free Hanging (In-Line)	Nickel	8	-40 C	100 °C	Strain Relief	Silver	7 A	Plug Male Pins	Die Cast	Silver	IP40

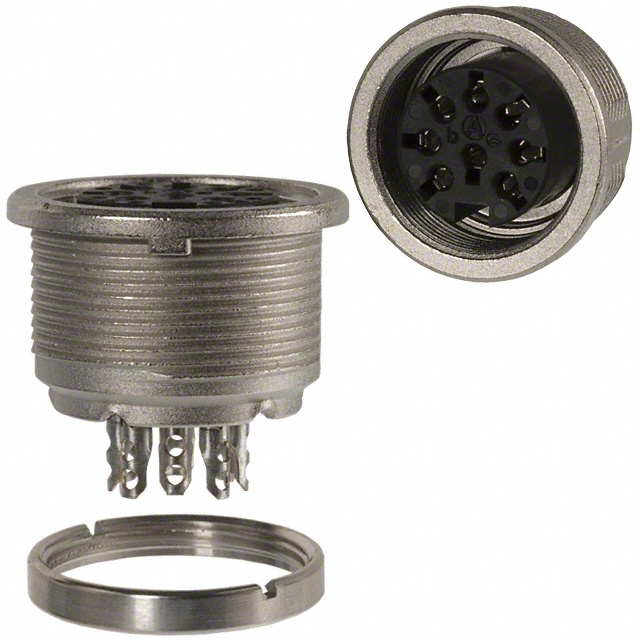

Amphenol Tuchel Industrial T3507000U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Female Sockets	Die Cast	Silver	IP40

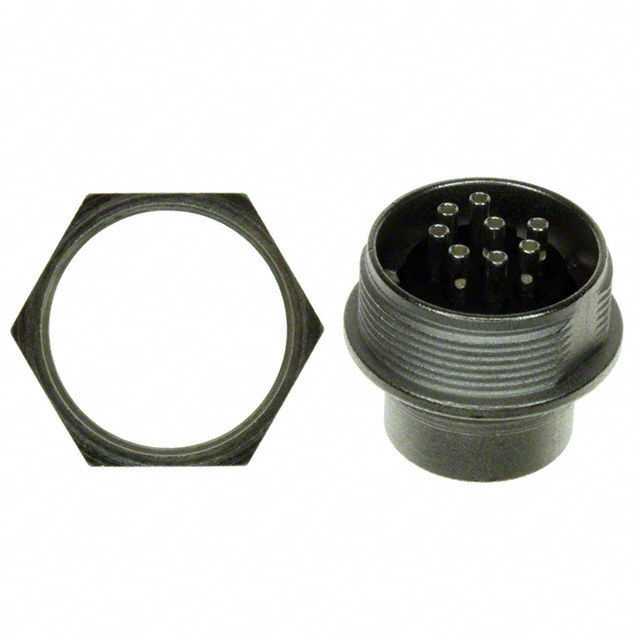

Amphenol Tuchel Industrial T3506009U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Male Pins	Die Cast	Silver	IP40	Bulkhead - Rear Side Nut

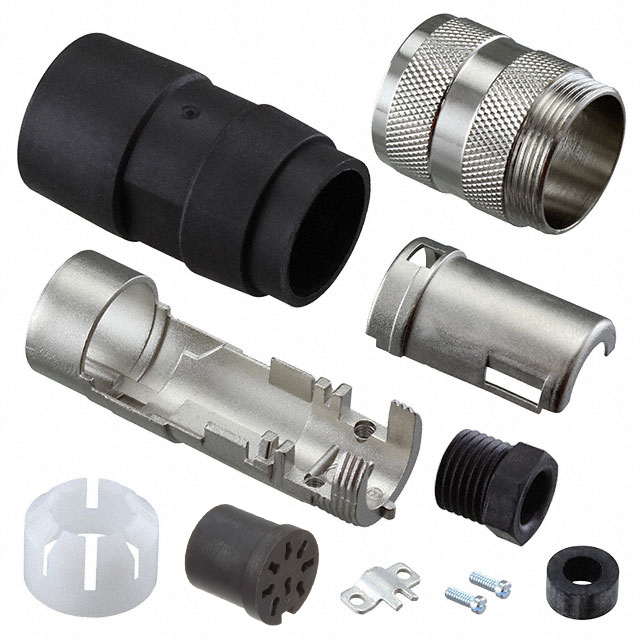

Amphenol Tuchel Industrial T3504552U	M16-8		Shielded	Keyed	Threaded		Free Hanging (In-Line)	Nickel	8	-40 C	100 °C	Backshell Cable Clamp Coupling Nut			Plug Housing	Die Cast		IP40		UL94 V-0	1.5 mm	For Male Pins	Thermoplastic	Circular	Crimp	Contacts Not Included	Black Silver

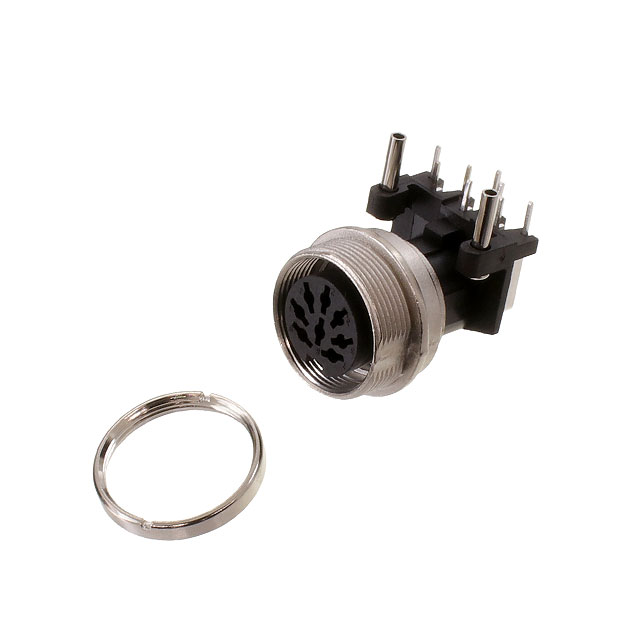

Amphenol Tuchel Industrial T3507900U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount Right Angle Through Hole	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Female Sockets	Die Cast	Silver	IP40										Solder

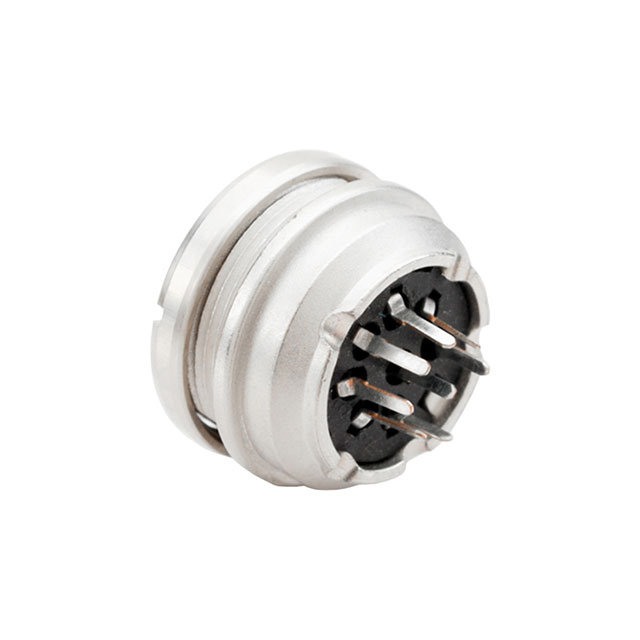

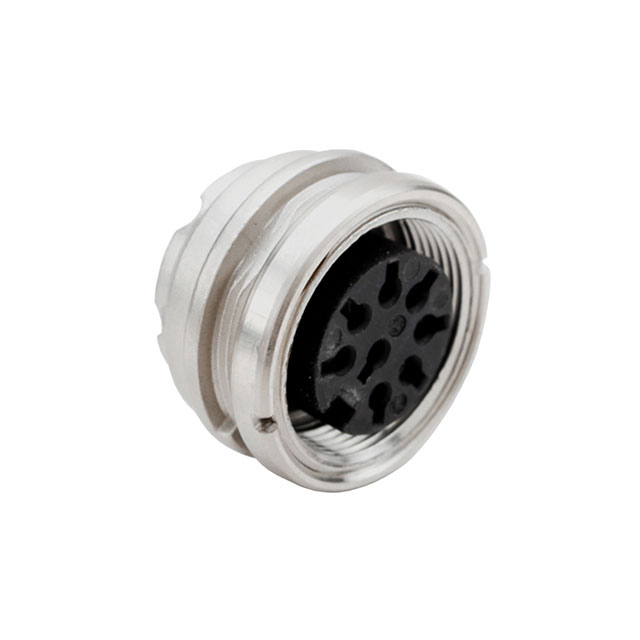

Amphenol Tuchel Industrial T3507400U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount Through Hole	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Female Sockets	Die Cast	Silver	IP40										Solder

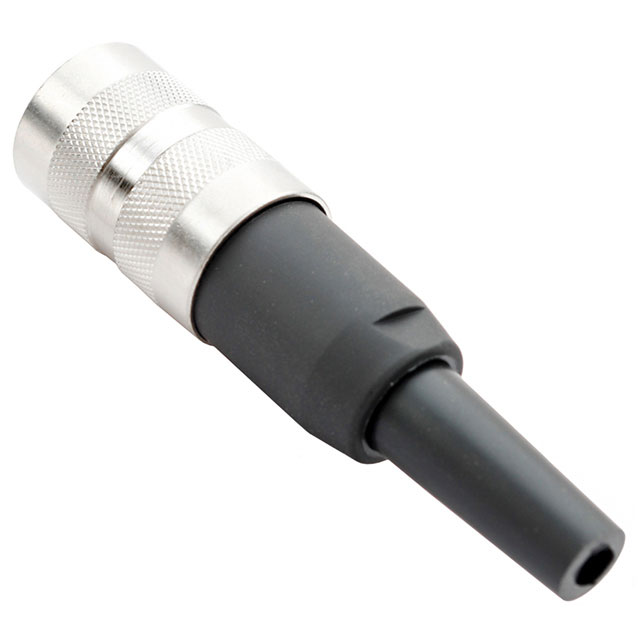

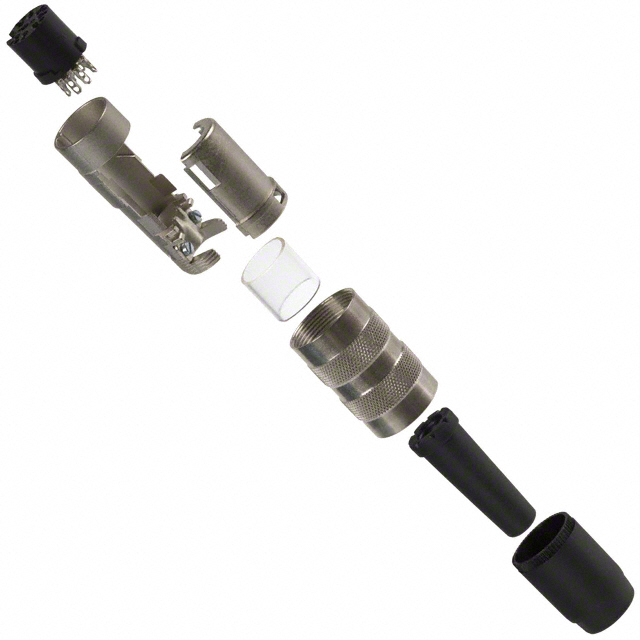

Amphenol Tuchel Industrial T3505001U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Free Hanging (In-Line)	Nickel	8	-40 C	100 °C	Strain Relief	Silver	7 A	Plug Female Sockets	Die Cast	Silver	IP40

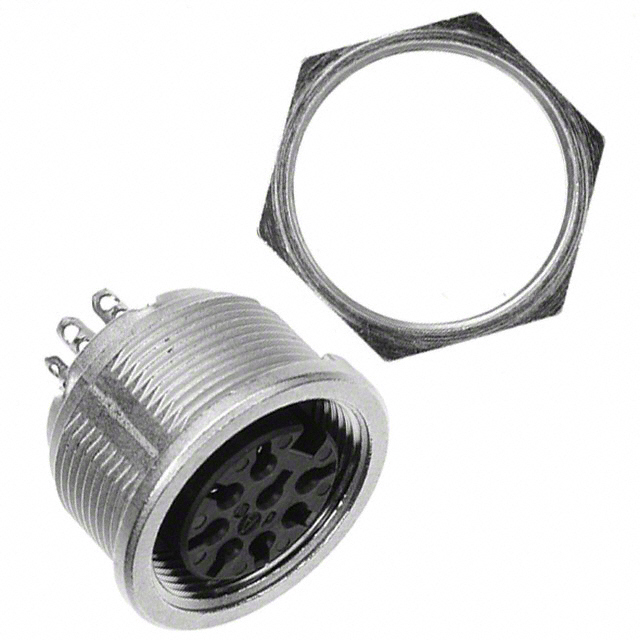

Amphenol Tuchel Industrial T3507009U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Female Sockets	Die Cast	Silver	IP40	Bulkhead - Rear Side Nut

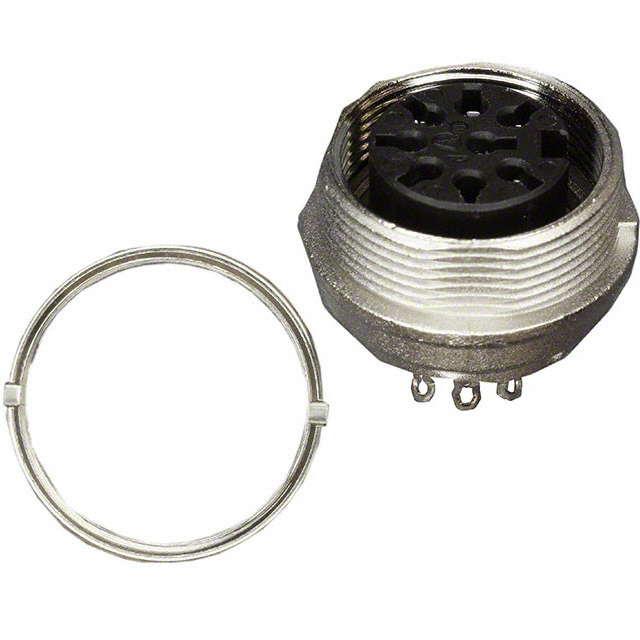

Amphenol Tuchel Industrial T3507100U	M16-8	Metal	Shielded	Keyed	Threaded	250 V	Panel Mount	Nickel	8	-40 C	100 °C		Silver	7 A	Receptacle Female Sockets	Die Cast	Silver	IP40
