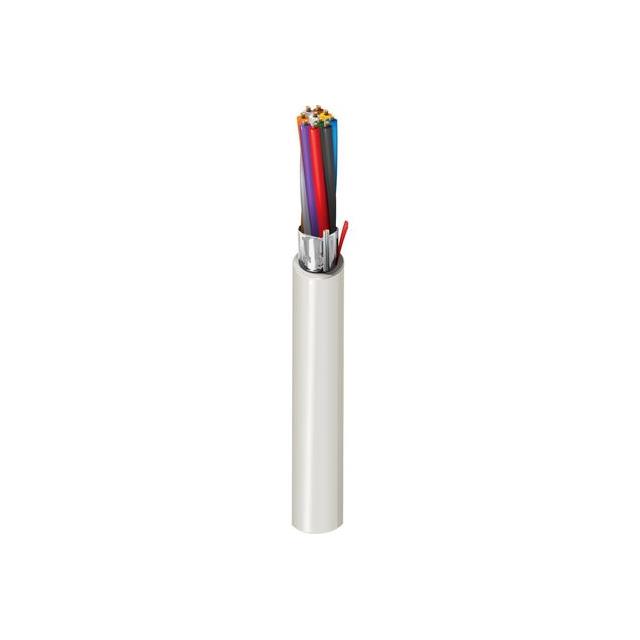

6508FE Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 10COND 22AWG NATURAL
| Part | Shield Coverage | Shield Material | Ratings | Wire Gauge | Features | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Cable Type | Length | Length | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Shield Type | Number of Conductors [custom] | Usage | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | UL Style CMP | 22 AWG | Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Natural | 75 ░C | 0 °C | Copper Bare | Multi-Conductor | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Foil | 10 | Security Sound | 0.222 in 5.64 mm | 30 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC |
Belden Inc. | 100 % | Aluminum | UL Style CMP | 22 AWG | Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Natural | 75 ░C | 0 °C | Copper Bare | Multi-Conductor | 304.8 m | 1000 ft | 0.381 mm | 0.015 in | Foil | 10 | Security Sound | 0.222 in 5.64 mm | 30 AWG | 7 | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC |
