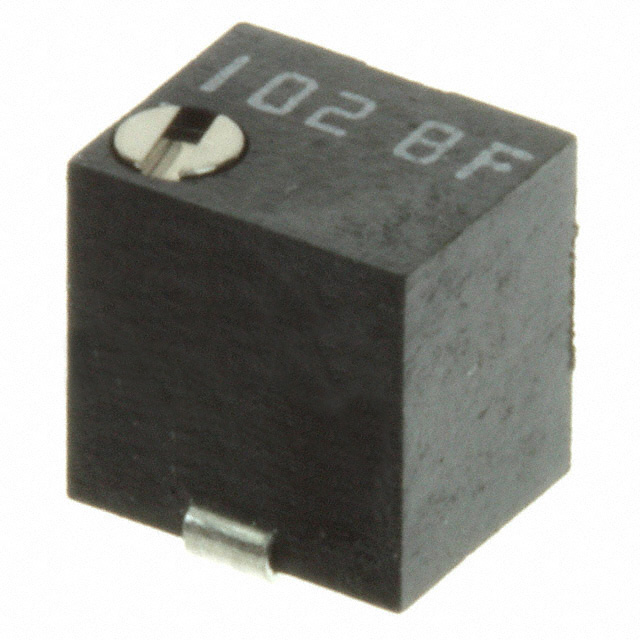

SM31W Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
TRIMMER, MULTI TURN, RUO2 CERMET, TOP ADJUST, 5 KOHM, SURFACE MOUNT, 5 TURNS
| Part | Adjustment Type | Number of Turns | Power (Watts) | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Resistance | Tolerance | Termination Style | Temperature Coefficient | Resistive Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 5 kOhms | 20 % | J Lead | 100 ppm/°C | Cermet |
 Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 20 % | J Lead | 100 ppm/°C | Cermet | |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 2 MOhms | 20 % | J Lead | 100 ppm/°C | Cermet |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 200 Ohms | 20 % | J Lead | 100 ppm/°C | Cermet |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 0.5 kOhms | 20 % | J Lead | 100 ppm/°C | Cermet |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 50 Ohms | 20 % | J Lead | 100 ppm/°C | Cermet |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 100 kOhms | 20 % | J Lead | 100 ppm/°C | Cermet |
Nidec Components Corporation | Top Adjustment | 5 | 0.125 W | 0.125 W | 0.154 " | 3.2 mm | Rectangular - Face | 0.126 in | 3.9 mm | Surface Mount | 20 kOhms | 20 % | J Lead | 100 ppm/°C | Cermet |
