CMLB064T Series
Manufacturer: Delta Electronics/Cyntec
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

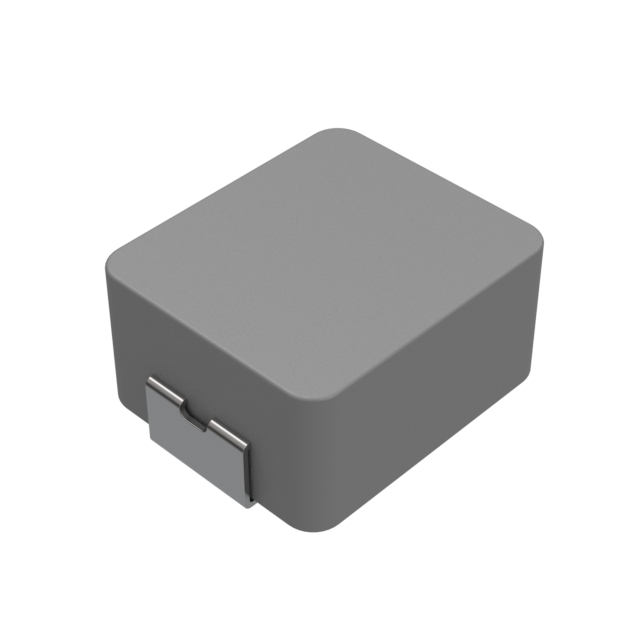

FIXED IND 2.2UH 8.1A 17.3MOHM SM
| Part | Mounting Type | Tolerance | Package / Case | Height - Seated (Max) | Current Rating | Material - Core | Shielding | Inductance | Inductance Frequency - Test | DC Resistance (DCR) (Max) | Size / Dimension Width | Size / Dimension Length | Current - Saturation (Isat) | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | Surface Mount | 20 % | Nonstandard | 0.157 in | 8.1 A | Metal | Unshielded | 2.2 µH | 100 kHz | 17.3 mOhm | 0.26 in | 0.274 in | 12 A | 125 °C | -55 °C |
