PGA2310 Series

+/-15-V stereo audio volume control with low gain error (0.05)

Catalog

+/-15-V stereo audio volume control with low gain error (0.05)

Part	Package / Case [x]	Package / Case	Package / Case [y]	Interface	Supplier Device Package	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Number of Channels [custom]	Mounting Type	Function	Package / Case	Package / Case	Type	Contents	Secondary Attributes [Min]	Secondary Attributes [Max]	Secondary Attributes	Utilized IC / Part	Supplied Contents	Primary Attributes	Primary Attributes
Texas Instruments PGA2310UA/1KG4	0.295 in	16-SOIC	7.5 mm	SPI	16-SOIC	Automotive	85 °C	-40 °C	15.5 V	-4.5 V	Audio Musical Instruments	2	Surface Mount	Volume Control
Texas Instruments PGA2310PA		16-DIP		SPI	16-PDIP	Automotive	85 °C	-40 °C	15.5 V	-4.5 V	Audio Musical Instruments	2	Through Hole	Volume Control	0.3 in	7.62 mm
Texas Instruments PGA2310UA/1K	0.295 in	16-SOIC	7.5 mm	SPI	16-SOIC	Automotive	85 °C	-40 °C	15.5 V	-4.5 V	Audio Musical Instruments	2	Surface Mount	Volume Control

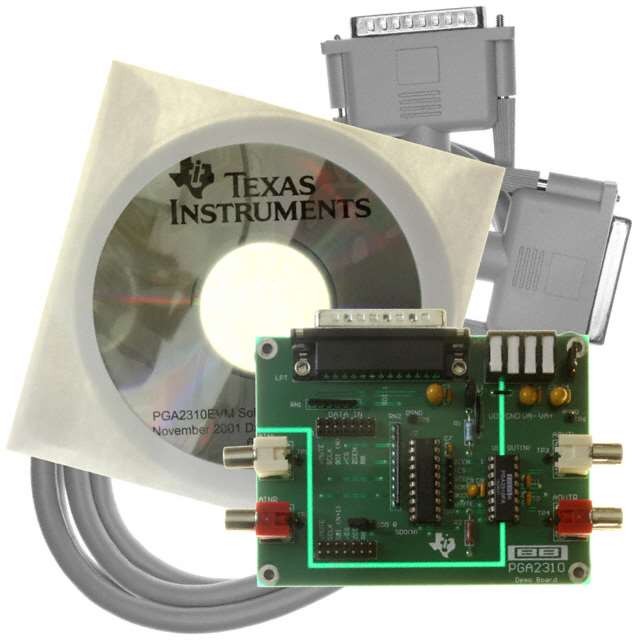

Texas Instruments PGA2310EVM														Volume Control			Audio	Board(s) Cable(s)	-95.5 dB	31.5 dB	0.0004 THD+N 120 dB	PGA2310	Board(s) Cable(s)	Stereo Volume Control Three-Wire Serial Interface	600 Ohm
Texas Instruments PGA2310UA	0.295 in	16-SOIC	7.5 mm	SPI	16-SOIC	Automotive	85 °C	-40 °C	15.5 V	-4.5 V	Audio Musical Instruments	2	Surface Mount	Volume Control

Catalog

+/-15-V stereo audio volume control with low gain error (0.05)

Key Features

• Digitally-Controlled Analog Volume Control:Two Independent Audio ChannelsSerial Control InterfaceZero Crossing DetectionMute FunctionWide Gain and Attenuation Range: 31.5 dB to–95.5 dB With 0.5-dB StepsLow Noise and Distortion:120-dB Dynamic Range0.0004% THD+N at 1 kHzLow Interchannel Crosstalk: –126 dBFSNoise-Free Level TransitionsPower Supplies: 15-V Analog, 5-V DigitalAvailable in DIP–16 and SOL–16 PackagesPin and Software Compatible With the PGA2311and Cirrus Logic CS3310™Digitally-Controlled Analog Volume Control:Two Independent Audio ChannelsSerial Control InterfaceZero Crossing DetectionMute FunctionWide Gain and Attenuation Range: 31.5 dB to–95.5 dB With 0.5-dB StepsLow Noise and Distortion:120-dB Dynamic Range0.0004% THD+N at 1 kHzLow Interchannel Crosstalk: –126 dBFSNoise-Free Level TransitionsPower Supplies: 15-V Analog, 5-V DigitalAvailable in DIP–16 and SOL–16 PackagesPin and Software Compatible With the PGA2311and Cirrus Logic CS3310™

Description

The PGA2310 is a high-performance, stereo audio volume control designed for professional and high-end consumer audio systems. The ability to operate from ±15-V analog power supplies enables the PGA2310 to process input signals with large voltage swings, thereby preserving the dynamic range available in the overall signal path. Using high performance operational amplifier stages internal to the PGA2310 yields low noise and distortion, while providing the capability to drive 600-Ω loads directly without buffering. The three-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining multiple PGA2310 devices. The PGA2310 is a high-performance, stereo audio volume control designed for professional and high-end consumer audio systems. The ability to operate from ±15-V analog power supplies enables the PGA2310 to process input signals with large voltage swings, thereby preserving the dynamic range available in the overall signal path. Using high performance operational amplifier stages internal to the PGA2310 yields low noise and distortion, while providing the capability to drive 600-Ω loads directly without buffering. The three-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining multiple PGA2310 devices.
