MAX4782 Series

Catalog

IC SWITCH SP4T X 2 1OHM 16TSSOP

Part	Switch Circuit	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]	Current - Leakage (IS(off)) (Max) [Max]	Charge Injection	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Mounting Type	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Supplier Device Package	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Package / Case [x]	Package / Case	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Crosstalk
Analog Devices Inc./Maxim Integrated MAX4782EUE+	SP4T	4:1	1 Ohms	2 nA	-110 pC	38 pF	158 pF	15 ns	25 ns	Surface Mount	3.6 V	1.6 V	16-TSSOP	2	300 mOhm	0.173 in	16-TSSOP	4.4 mm	85 °C	-40 °C	-80 dB
Analog Devices Inc./Maxim Integrated MAX4782EUE+T	SP4T	4:1	1 Ohms	2 nA	-110 pC	38 pF	158 pF	15 ns	25 ns	Surface Mount	3.6 V	1.6 V	16-TSSOP	2	300 mOhm	0.173 in	16-TSSOP	4.4 mm	85 °C	-40 °C	-80 dB

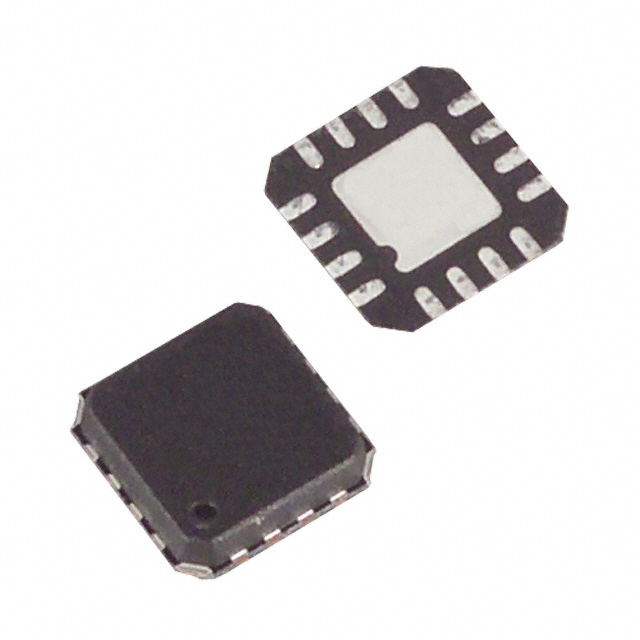

Analog Devices Inc./Maxim Integrated MAX4782EGE+	SP4T	4:1	1 Ohms	2 nA	-110 pC	38 pF	158 pF	15 ns	25 ns	Surface Mount	3.6 V	1.6 V	16-QFN (4x4)	2	300 mOhm		16-VQFN Exposed Pad		85 °C	-40 °C	-80 dB
Analog Devices Inc./Maxim Integrated MAX4782ETE+	SP4T	4:1	1 Ohms	2 nA	-110 pC	38 pF	158 pF	15 ns	25 ns	Surface Mount	3.6 V	1.6 V	16-TQFN (3x3)	2	300 mOhm		16-WFQFN Exposed Pad		85 °C	-40 °C	-80 dB
Analog Devices Inc./Maxim Integrated MAX4782ETE+T	SP4T	4:1	1 Ohms	2 nA	-110 pC	38 pF	158 pF	15 ns	25 ns	Surface Mount	3.6 V	1.6 V	16-TQFN (3x3)	2	300 mOhm		16-WFQFN Exposed Pad		85 °C	-40 °C	-80 dB
