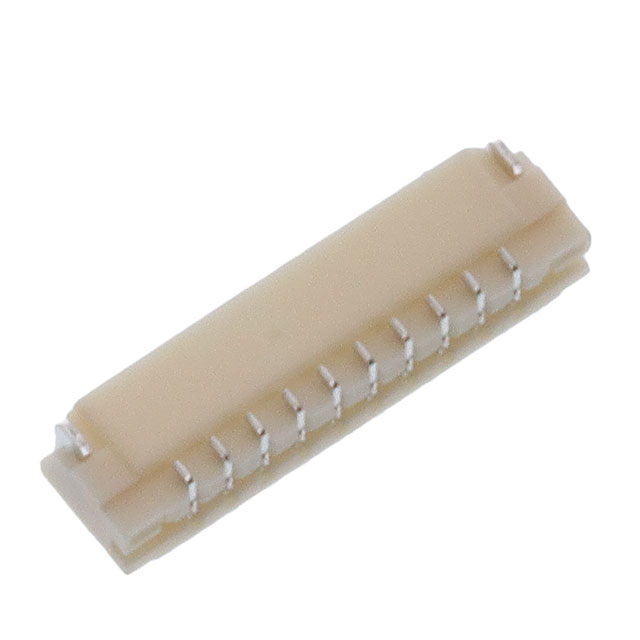

SM10B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 10POS 0.6MM
| Part | Applications | Insulation Height [custom] | Insulation Height [custom] | Contact Type | Number of Positions | Termination | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Mounting Type | Voltage Rating | Connector Type | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Number of Rows | Style | Insulation Color | Contact Shape | Insulation Material | Current Rating (Amps) | Contact Material | Features | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | 1.45 mm | 0.057 in | Outer Shroud Contact | 10 | Solder | Shrouded - 4 Wall | 85 °C | -25 °C | All | Right Angle Surface Mount | 30 VDC | Header | Friction Lock | 0.6 mm | 0.024 in | Tin | 1 | Board to Cable/Wire | Natural | Rectangular | Nylon Polyamide (PA) | 0.2 A | Copper Alloy | Solder Retention | UL94 V-0 |
