CCA Series

Catalog

PLUGGABLE TERMINAL BLOCKS 3 POS 5.08MM PITCH THROUGH HOLE HEADER

Part	Voltage - IEC	Termination Style	Header Orientation	Positions Per Level	Type	Contact Mating Finish	Number of Levels	Current - UL	Color	Mounting Type	Voltage - UL	Pitch	Pitch	Current - IEC	Insulation Height	Insulation Height	Housing Material	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features
Phoenix Contact 1954922	400 V	Solder	90° Right Angle	3	Header Male Pins Shrouded (4 Side)	Tin	1	10 A	Black	Through Hole	300 V	5.08 mm	0.2 in	12 A
Phoenix Contact 1955015	400 V	Solder	90° Right Angle	11	Header Male Pins Shrouded (4 Side)	Tin	1	10 A	Black	Through Hole	300 V	5.08 mm	0.2 in	12 A	8.61 mm	0.339 "	Liquid Crystal Polymer (LCP)	UL94 V-0	0.102 in	2.6 mm	11
Phoenix Contact 1955138	400 V	Solder	90° Right Angle	12	Header Male Pins Shrouded (4 Side)	Tin	1	10 A	Black	Through Hole	300 V	5.08 mm	0.2 in	12 A	8.61 mm	0.339 "	Liquid Crystal Polymer (LCP)	UL94 V-0	0.102 in	2.6 mm	12
Phoenix Contact 1836502	320 V	Solder	90° Right Angle	18	Header Male Pins Shrouded (4 Side)	Tin	1	16 A	Black	Through Hole	300 V	5 mm	0.197 in	12 A			Liquid Crystal Polymer (LCP)	UL94 V-0	0.079 in	2 mm	18	Copper Alloy	-40 C	100 °C
Phoenix Contact 1836557	320 V	Solder	90° Right Angle	23	Header Male Pins Shrouded (4 Side)	Tin	1	16 A	Black	Through Hole	300 V	5 mm	0.197 in	12 A			Liquid Crystal Polymer (LCP)	UL94 V-0	0.079 in	2 mm	23	Copper Alloy	-40 C	100 °C

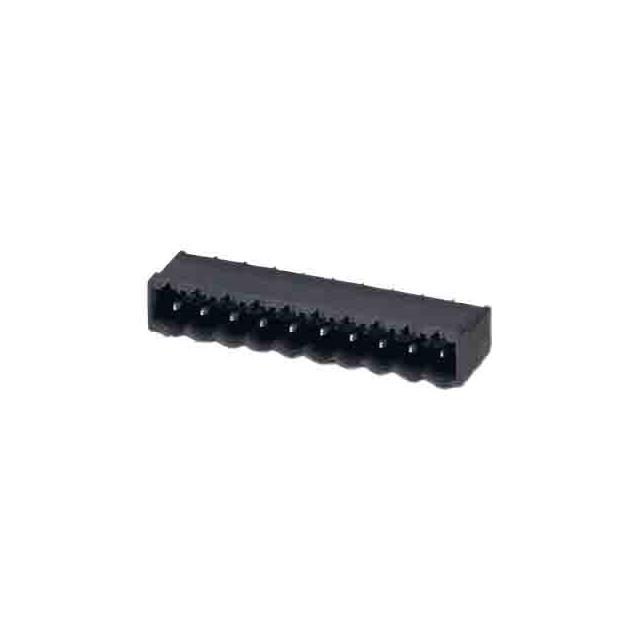

Phoenix Contact 1703562	250 V	Solder	90° Right Angle	8	Header Male Pins Shrouded (4 Side)	Tin	1		Green	Through Hole		5.08 mm	0.2 in	12 A	8.61 mm	0.339 "			0.102 in	2.6 mm	8

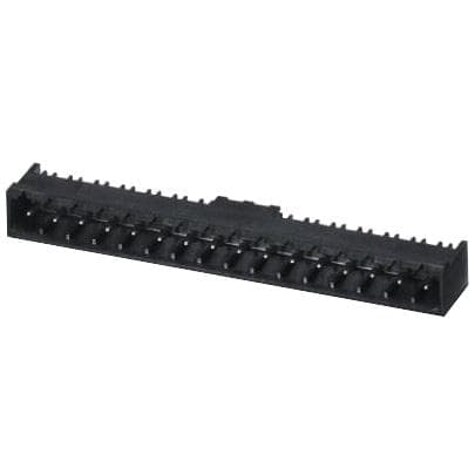

Phoenix Contact 1836531	320 V	Solder	90° Right Angle	21	Header Male Pins Shrouded (4 Side)	Tin	1	16 A	Black	Through Hole	300 V	5 mm	0.197 in	12 A							21		-40 C	100 °C
Phoenix Contact 1954951	400 V	Solder	90° Right Angle	6	Header Male Pins Shrouded (4 Side)	Tin	1	10 A	Black	Through Hole	300 V	5.08 mm	0.2 in	12 A							6
Phoenix Contact 1836641	400 V	Solder	90° Right Angle	9	Header Male Pins Shrouded (4 Side)	Tin	1	16 A	Black	Through Hole	300 V	5 mm	0.197 in	12 A			Liquid Crystal Polymer (LCP)	UL94 V-0	0.079 in	2 mm	9
Phoenix Contact 1955280	400 V	Solder	90° Right Angle	3	Header Male Pins Shrouded (4 Side)	Tin	1	10 A	Black	Through Hole	300 V	5.08 mm	0.2 in	12 A	8.61 mm	0.339 "	Liquid Crystal Polymer (LCP)	UL94 V-0	0.102 in	2.6 mm					Locking Ramp
