282825 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 21POS VERT 5.08MM
| Part | Number of Positions | Positions Per Level | Color | Voltage - UL | Contact Tail Length | Contact Tail Length | Number of Levels | Insulation Height | Insulation Height | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Features | Termination Style | Header Orientation | Contact Material | Contact Mating Finish | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 21 | 21 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |
TE Connectivity Raychem Cable Protection | 11 | 11 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |

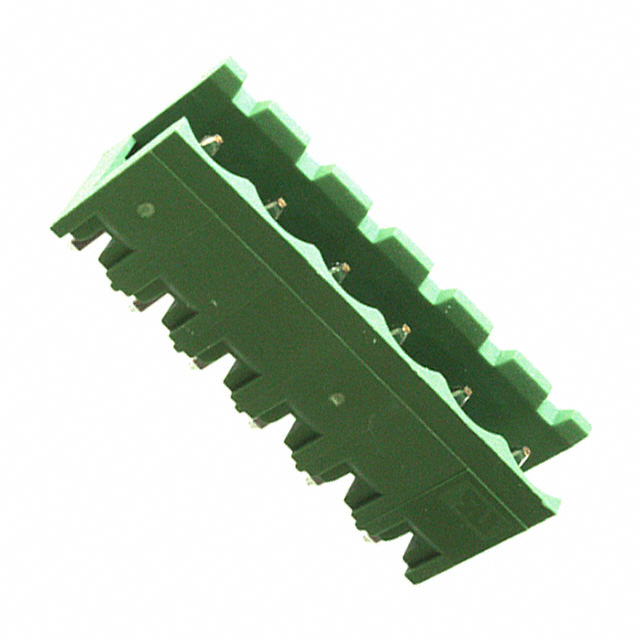

 TE Connectivity Raychem Cable Protection | 6 | 6 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |

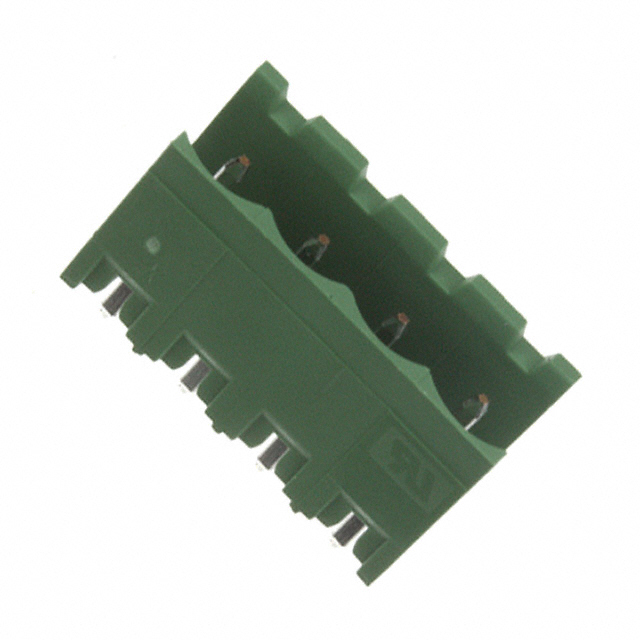

 TE Connectivity Raychem Cable Protection | 4 | 4 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |

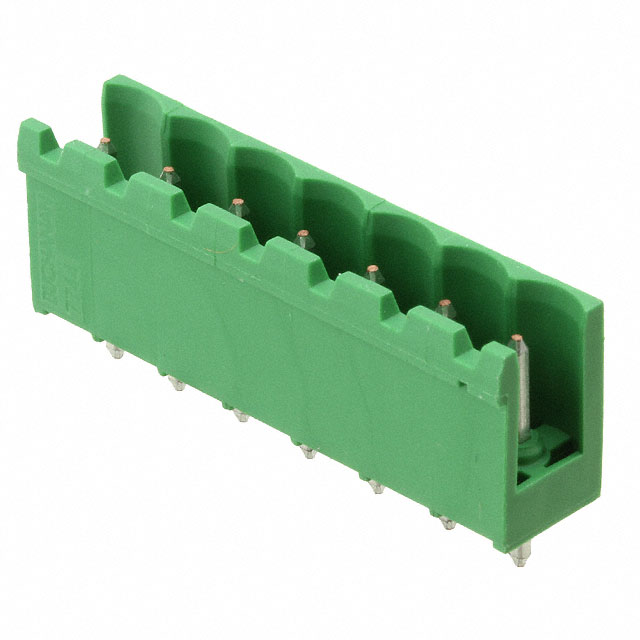

 TE Connectivity Raychem Cable Protection | 7 | 7 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |
TE Connectivity Raychem Cable Protection | 22 positions | 22 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |
TE Connectivity Raychem Cable Protection | 9 | 9 | Green | 300 V | 3.5 mm | 0.138 in | 1 | 0.472 in | 12 mm | 0.2 in | 5.08 mm | -40 °C | 110 °C | UL94 V-0 | Side Stacking | Solder | Vertical | Copper Alloy | Tin | Header Male Pins Shrouded (2 Side) | Through Hole |
